Walksnail Avatar HD Pro Kit 120fps 1080P VTX Kit DIY RC FPV Quadcopter Longrange Freestyle Drone Replacement Parts
Walksnail Avatar HD Pro Kit 120fps 1080P VTX Kit DIY RC FPV Quadcopter Longrange Freestyle Drone Replacement Parts
Walksnail Avatar HD Pro Kit 120fps 1080P VTX Kit DIY RC FPV Quadcopter Longrange Freestyle Drone Replacement Parts
Walksnail Avatar HD Pro Kit 120fps 1080P VTX Kit DIY RC FPV Quadcopter Longrange Freestyle Drone Replacement Parts
Walksnail Avatar HD Pro Kit 120fps 1080P VTX Kit DIY RC FPV Quadcopter Longrange Freestyle Drone Replacement Parts

Walksnail Avatar HD Pro Kit 120fps 1080P VTX Kit DIY RC FPV Quadcopter Longrange Freestyle Drone Replacement Parts

$197.54 $263.38
Save $65.84
Color:

Color
Quantity:

SPECIFICATIONS

Brand Name: IVODRC

Is Electric: No battery

Origin: Mainland China

Material: Composite Material

Recommend Age: 14+y

Recommend Age: 6-12y

RC Parts & Accs: Antennas

Size: Walksnail Avatar HD Pro Kit

For Vehicle Type: Helicopters

Use: Vehicles & Remote Control Toys

Upgrade Parts/Accessories: Adapter

Remote Control Peripherals/Devices: RECEIVERS

Tool Supplies: Assembly Category

Quantity: 1 pcs

Four-wheel Drive Attributes: Assemblage

Wheelbase: Screws

Choice: yes



Bullet Point :

  • 1/1.8 inch Sony Starvis Ⅱ sensor, come with extremely clear night vision as long as day vision.

  • Support 1080P/120fps high frame, also the first high frame night vision HD camera in FPV market.

  • Supporting Gyroflow for more stable and smoother footage.



Bullet Point:

  • Add 20*20mm mounting holes for easy installation.

  • Add 32g built-in storage option.

  • Updated the design of PCB board and outer shell, more durable.

  • A spare pad is added to provide two power connection modes.

  • Optimized antenna base design and frequency button position for greater convenience.

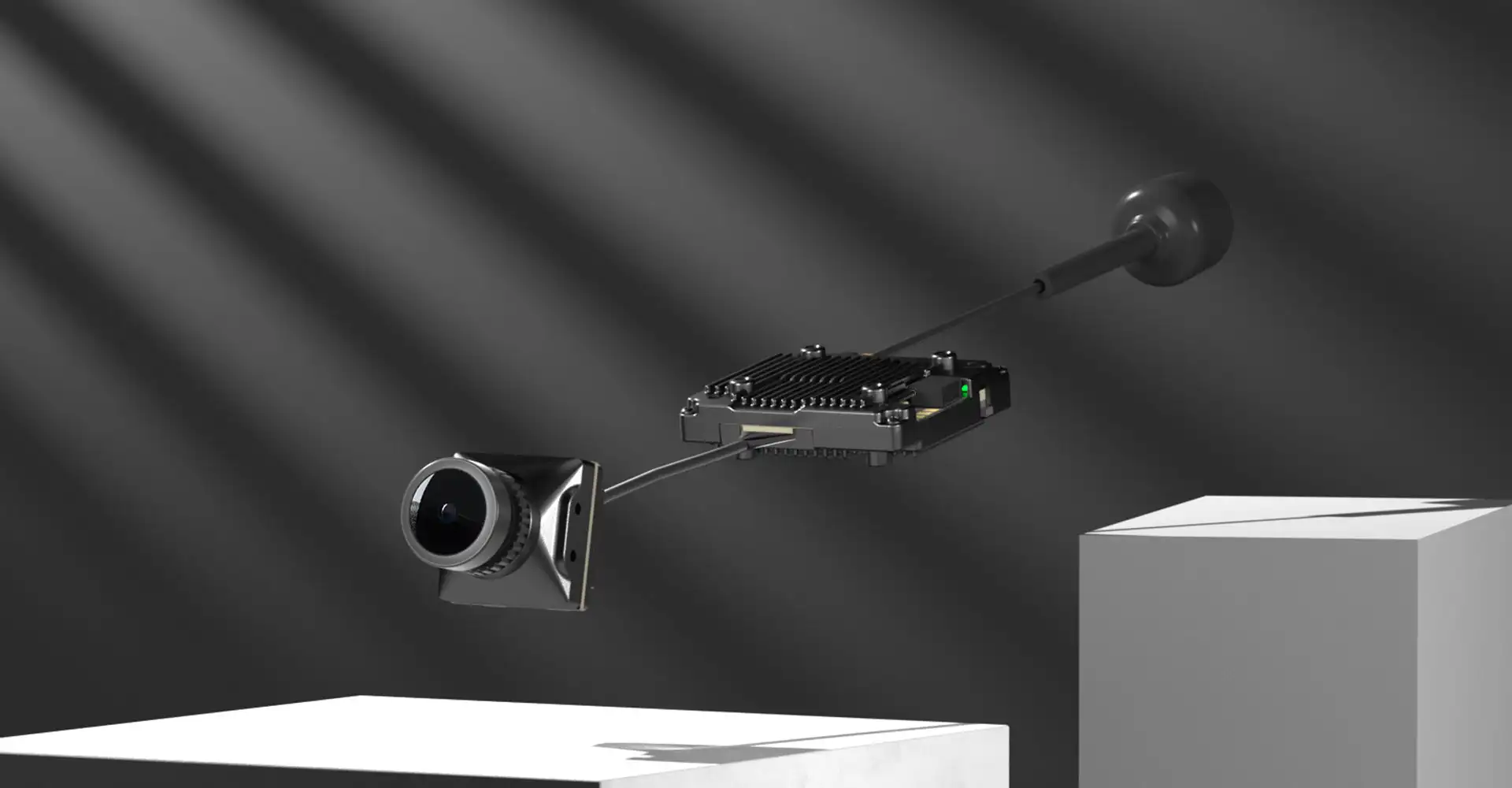

Bullet Point for Avatar HD Pro kit

features:

  • 1080P 120fps compatibility

  • High frame starlight

  • 22ms low latency

  • Ranging Mode

  • 4km range

  • Light weight design

  • FOV160°

  • Built-in 32G storage

  • 6V-25.2V

  • Sony Starvis Ⅱ Technology

  • The Avatar HD system uses H.265 code, an industry-leading technology, to provide 1080p FPV image quality with ultra-low latency. Support 1080P/60FPS, 720P/120FPS.

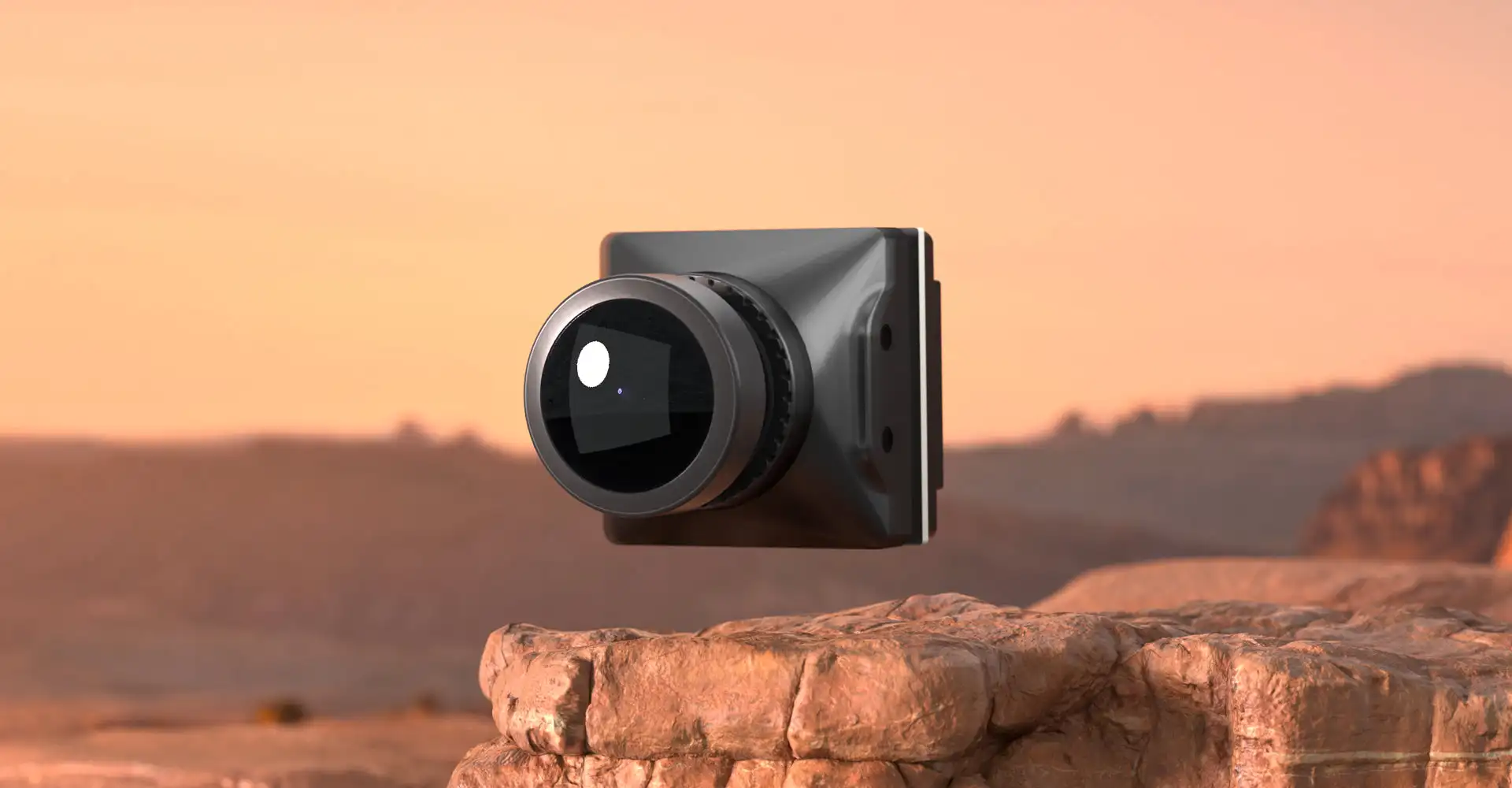

  • Featuring a 1/1.8 inch Sony Starvis Ⅱ sensor, this camera delivers excellent night vision that's just as clear as day.

  • The camera ( 32G VTX KIT) supports Gyroflow, take you smooth and stable video quality.

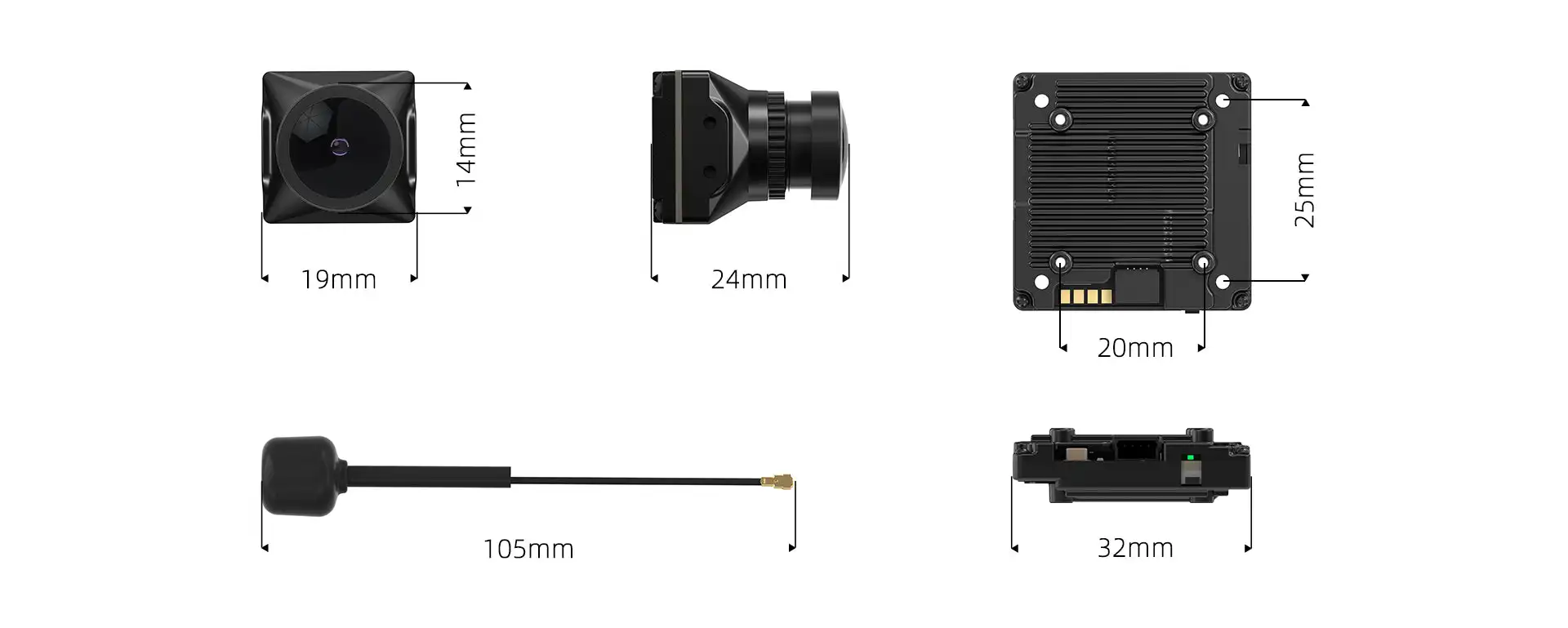

  • In addition to the original 25mm x 25mm mounting holes, the kit now includes 20mm x 20mm holes for greater compatibility with a wider range of FPV drone models.

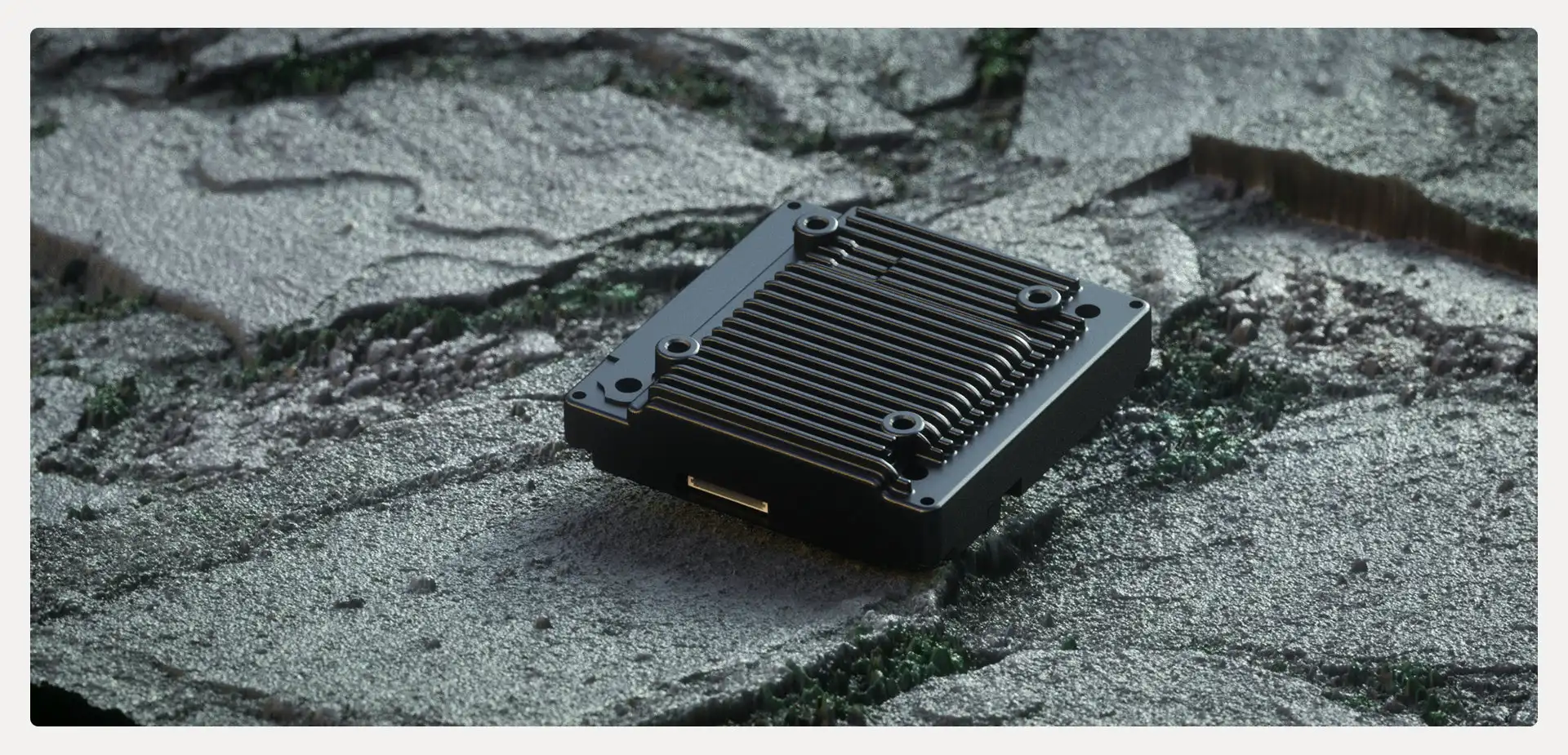

  • Updated the design of PCB board and shell, improved the quality of VTX, more durable.

  • Optimized the installation place of the antenna, so as to better protect the VTX.

  • The position of the frequency binding button has been changed to make the frequency binding operation more convenient.

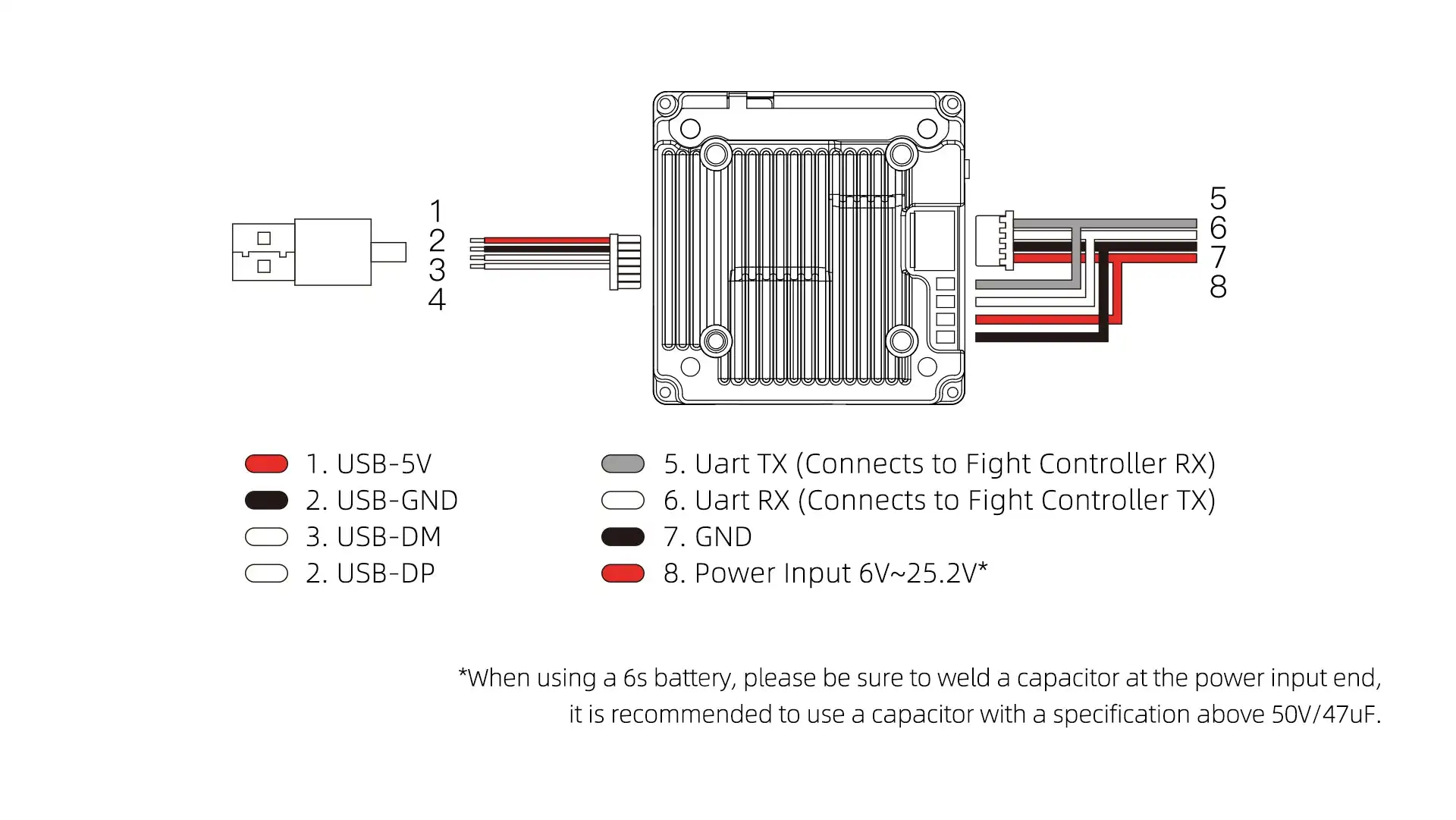

  • A spare pad is added to provide two power connection modes.

  • New VTX with enhanced TVS protection and support for up to 6S. With a wide input voltage the range of 6V to25.2V, our VTX delivers unmatched stability and resistance to GPS interference. Enjoy unparalleled performance and take your FPV adventures to new heights with our cutting-edge technology.

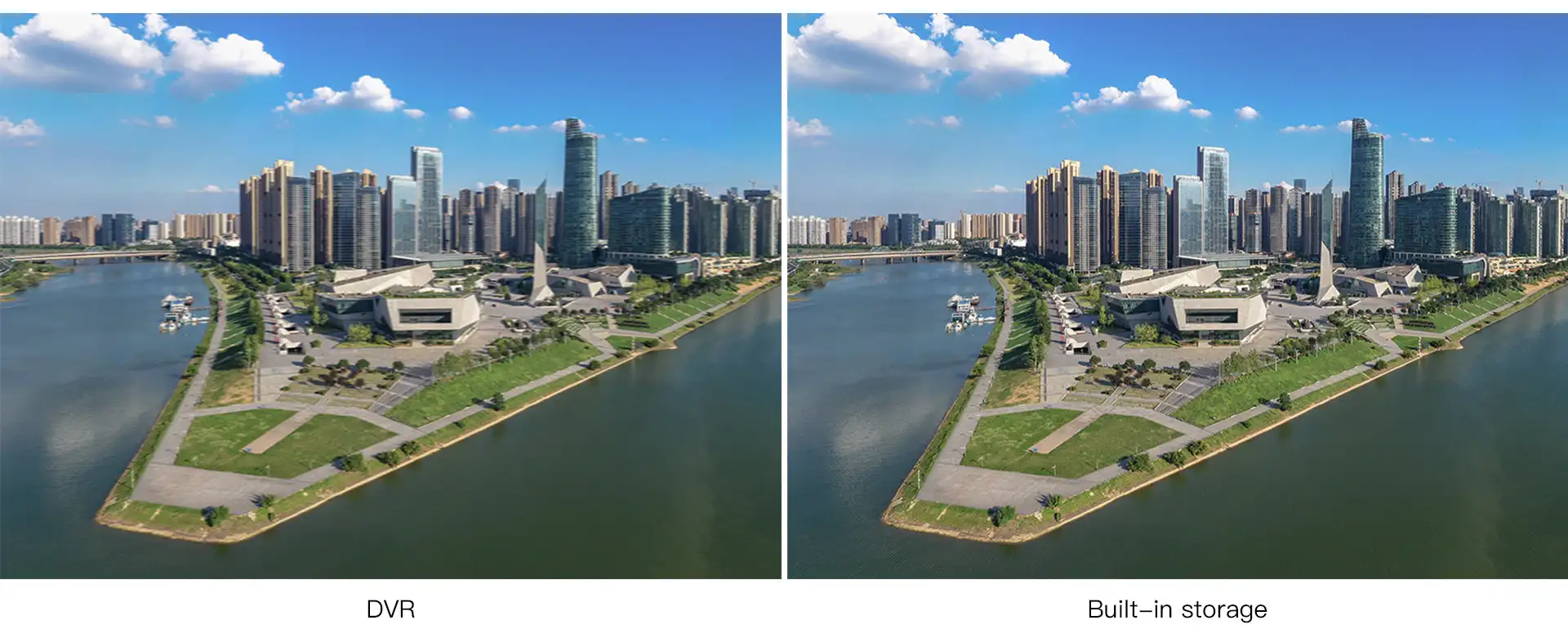

  • The Avatar VTX comes with 8g/32g built-in storage it can record 1080p or 720p HD flight videos without interference.32G built-in storage, recording video time increased by 4 times.

  • It supports high frame rate and standard frame rate at the same time. Under high frame rate, the average delay is 22ms.

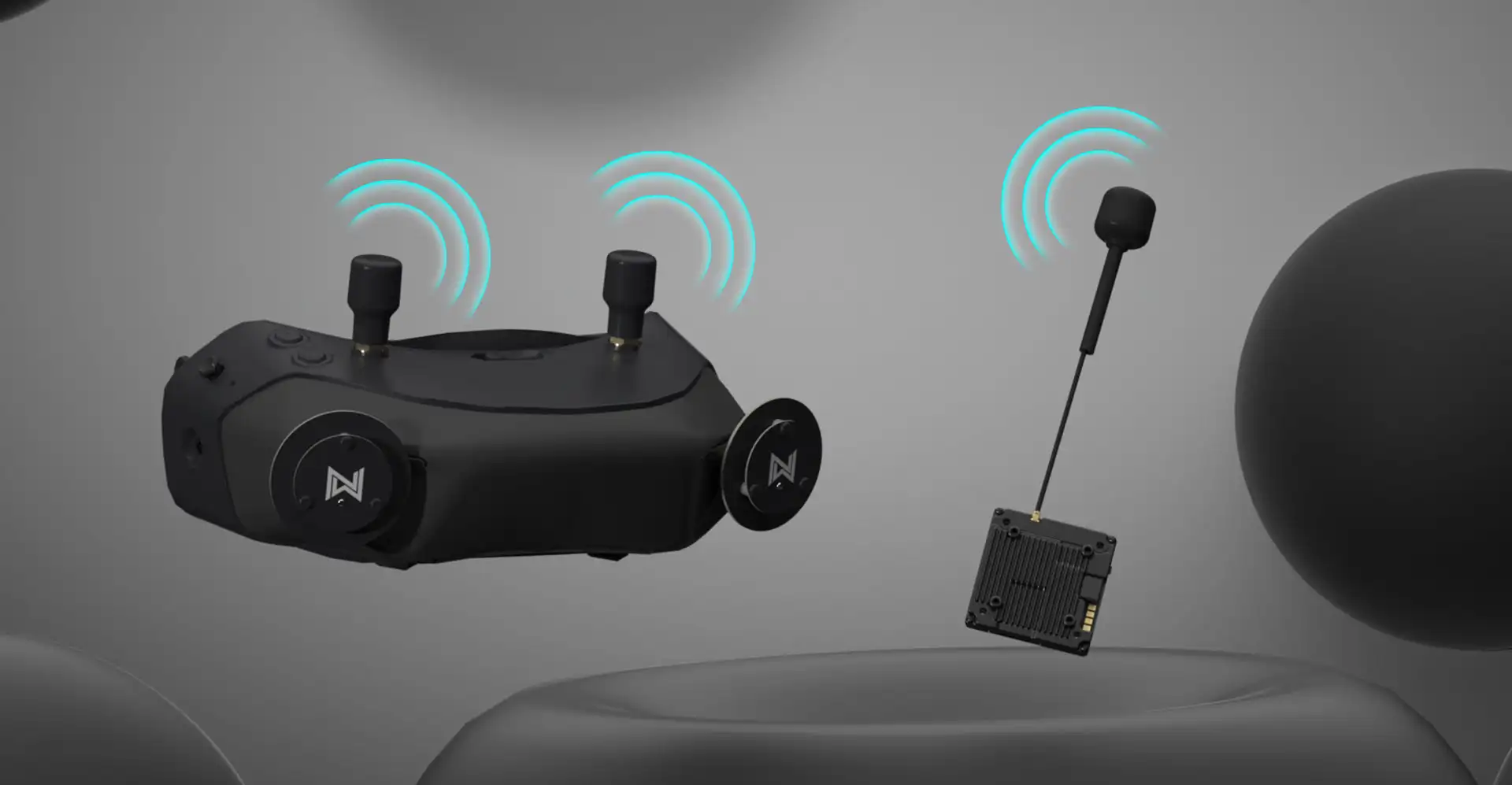

  • The compact and convenient single-antenna design makes it easier to assemble your FPV drone. The quality of the antenna is upgraded, and the working performance of the whole frequency band is more stable.

  • HD 1080p OLED Dual Micro Displays

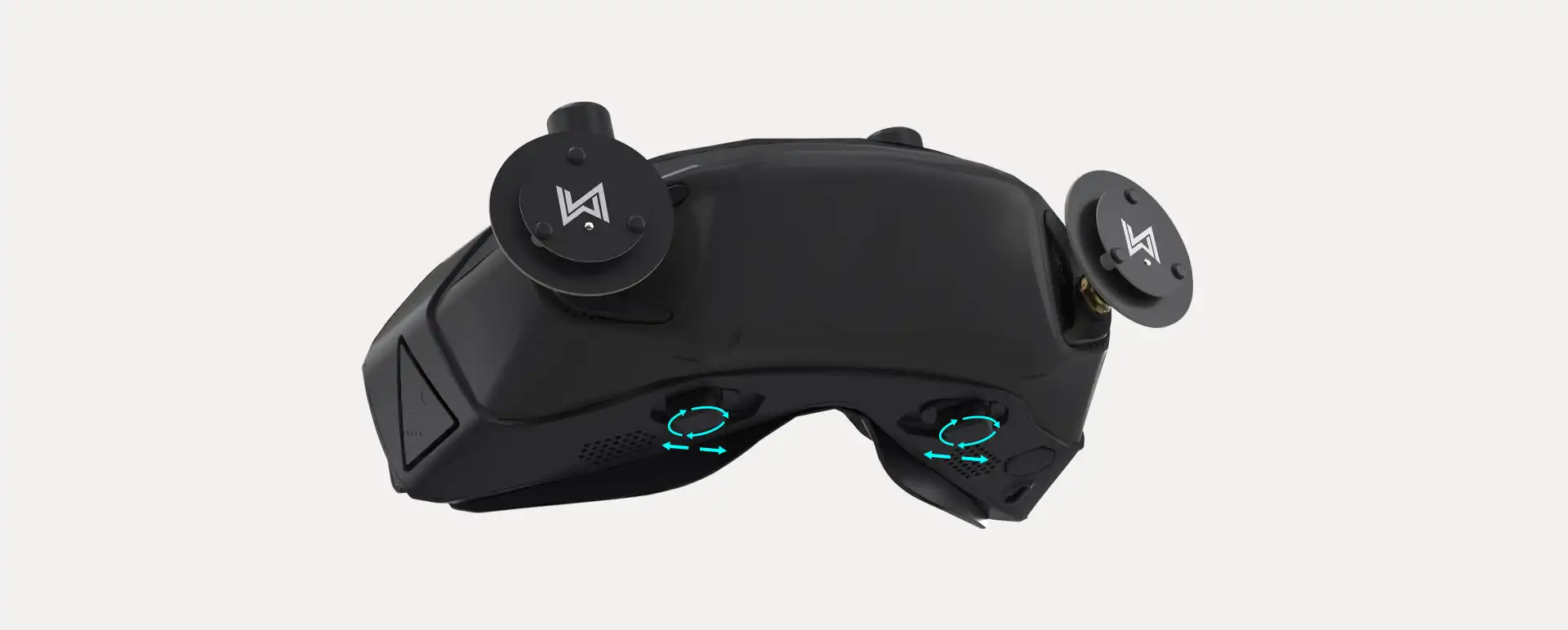

  • The Avatar goggles are designed to be lightweight, mini, small and have a 46° field of view, making them more comfortable for pilots while giving them a more immersive FPV experience.

  • The goggles have the feature of adjusting the focus without the need to install,corrective lenses.

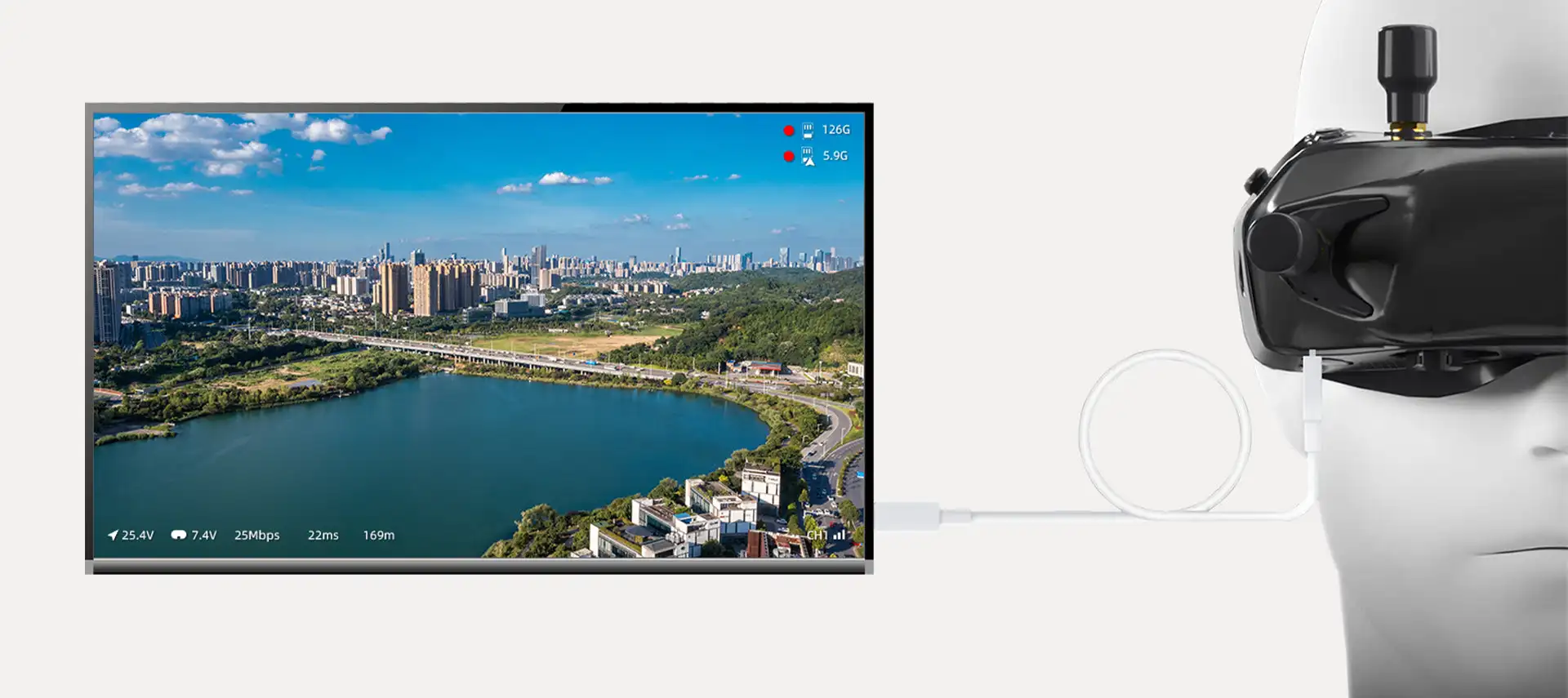

  • HDMI Output

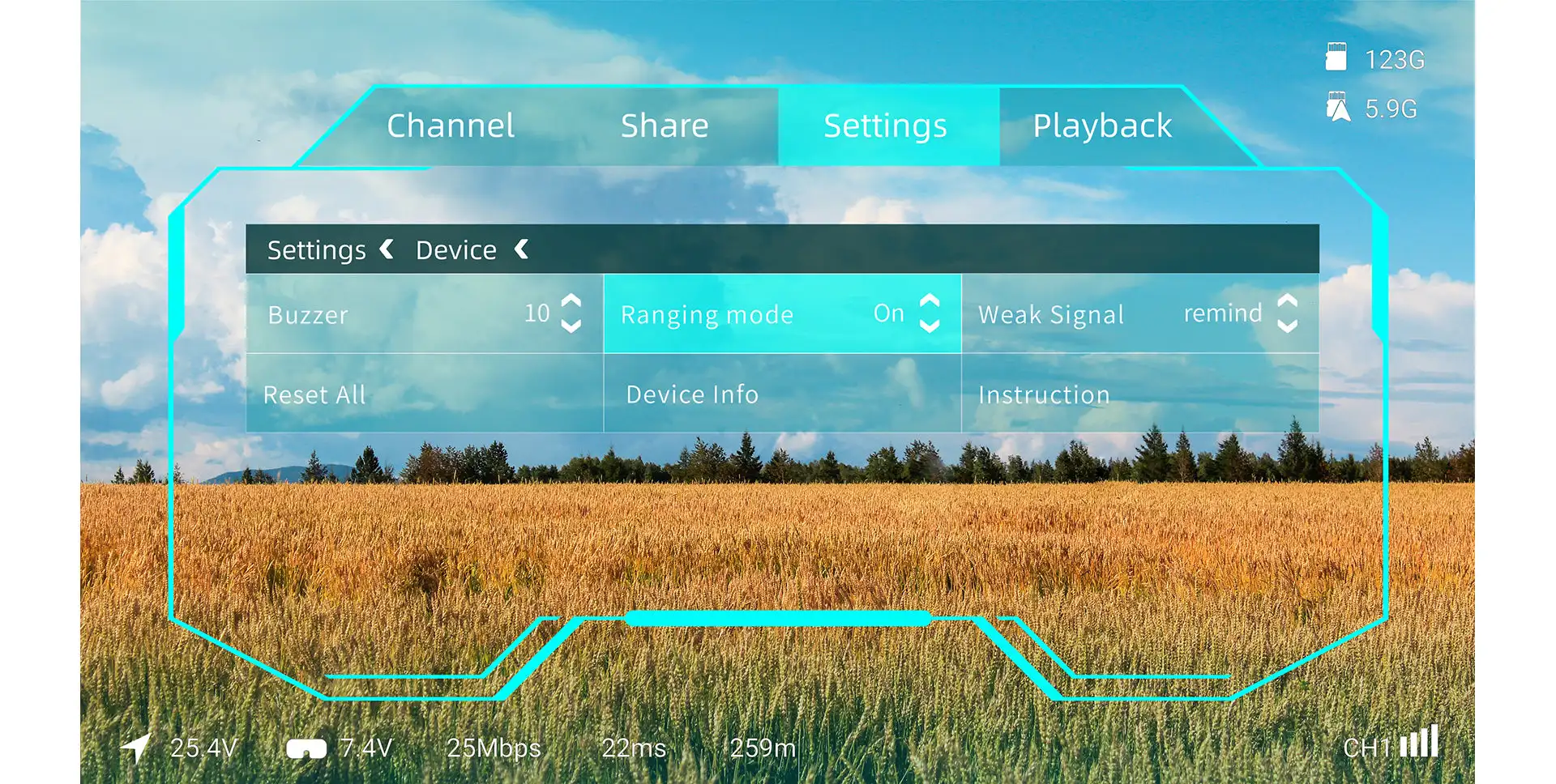

  • Turn on the ranging mode to display the distance between the drone and goggles in real time, in case the drone is lost due to long distance flight.

  • Q: Do we support 1080P 120FPS?

  • A: Our VTX products all support 1080P/120FPS, and can reach 1080P/120FPS through firmware upgrade is around the corner.


Specification

Camera

Model

Avatar HD pro camera

Image Sensor

1/1.8-Inch Sony Starvis Ⅱ Sensor

Resolution

1080P/60fps;720P/120fps,720P/60fps;1080P/120fps compatibility;

Ratio

16/9; 4/3

Lens

8Mp

FOV

160°

Aperture

F1.6

Shutter

Rolling shutter

Min.Illumination

0.00001Lux

Weight

9.5g

Dimensions

19*19*24mm

Coaxial Cable

140mm

VTX

Model

Avatar V2 module

Communication Frequency

5.725-5.850GHz

Transmitter Power (EIRP)

FCC:<30dBm;CE:<14dBm;SRRC:<20dBm;
MIC:<25dBm

1/O Interface

JST1.0*4(Power in)JST0.8*6(USB)

Mounting Holes

25.5*25.5mm; 20*20mm

Dimensions

33.5*33.5*10.5mm

Storage

8G/32G

Recording

1080p/720p

Weight

17.6g

Operating Temperature

-20-40℃

Channels

8

Wide Power Input

6V-25.2V

Supported FC System

Betaflight; Inav; Fettec; ArduPilot;Kiss

OSD

Canvas mode

Latency

Average delay 22ms

Antenna

1(IPEX)

Avatar V2 antenna

Polarization

LHCP

Frequency range

5600MHz-6000MHz

Gain

1.9dBi

VSWR

≤1.5

Input Impedance

50Ω

Interface

IPEX-1

Size

R15 X 45mm(without cable)

Weight

2g

Packing List

USB transfer extension cable

X1

4 Pin silicone cable

X1

M2*4mm screws

X8

M2*5mm screws

X4

M2*6mm screws

X4

M2*14mm screws

X4

M2*5*0.5mm gasket

X4
