RUSHFPV 3.3GHz 2W 8CH Video Transmitter 3.3Ghz Circular Polarized Antenna for Long Range FPV Drone RC Model
Color
SPECIFICATIONS
Brand Name: fpvking
Hign-concerned Chemical: None
Is Electric: No battery
Origin: Mainland China
Material: Composite Material
Recommend Age: 14+y
Quantity: 1 pcs
Model Number: 3.3G 2W VTX

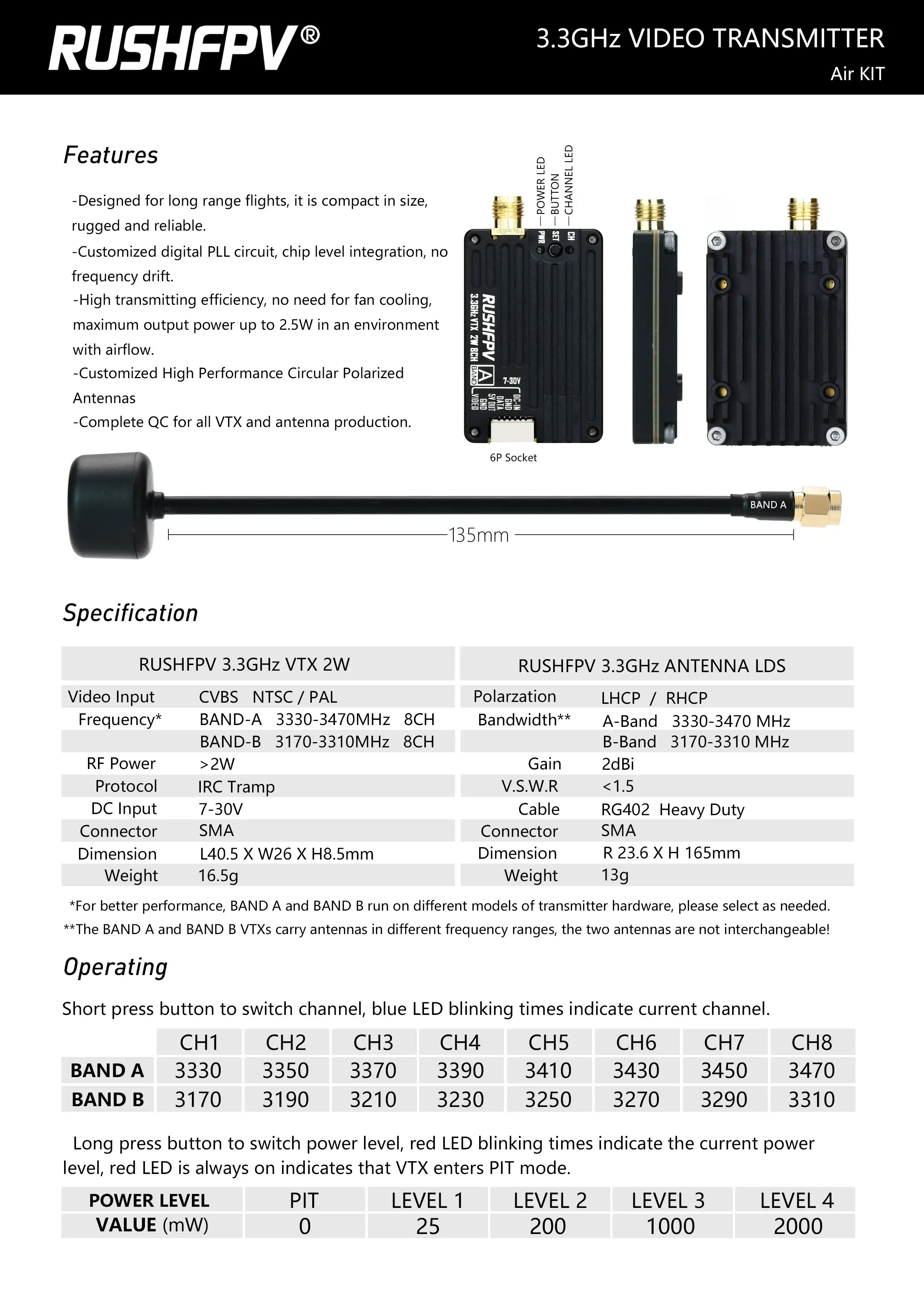

The RUSHFPV 3.3GHz 2W Video Transmitter is engineered for long-range FPV flights, offering compact size, durability, and reliable performance. Featuring a customized digital PLL circuit and high transmission efficiency, this VTX ensures no frequency drift and eliminates the need for fan cooling. With a maximum output power of up to 2.5W in environments with airflow, it is perfect for long-distance video transmission.
Specifications:
Video Input: CVBS NTSC/PAL
Frequency:
BAND-A: 3330-3470MHz (8 channels)
BAND-B: 3170-3310MHz (8 channels)
RF Power: >2W
Protocol: IRC Tramp
DC Input: 7-30V
Connector: SMA
Dimensions: 40.5 x 26 x 8.5 mm
Weight: 16.5g
Antenna Specifications:
Polarization: LHCP / RHCP
Bandwidth:
A-Band: 3330-3470MHz
B-Band: 3170-3310MHz
Gain: 2dBi
V.S.W.R: <1.5
Cable: RG402 Heavy Duty
Connector: SMA
Dimensions: 23.6 x 165 mm
Weight: 13g
Key Features:
1.Long-Range Capability: Ideal for extended flights, providing reliable video transmission over long distances.
2.Digital PLL Circuit: Customized integration at the chip level ensures stable performance without frequency drift.
3.High Transmission Efficiency: No fan cooling required, with a maximum output power of up to 2.5W.
4.Customized Circular Polarized Antennas: Designed for optimal performance with LHCP/RHCP polarization and high durability.
5.Quality Control: Comprehensive QC processes for both VTX and antenna production guarantee top-notch quality.
Package Included:
1 x 3.3G 2W Video Transmitter
Or
1 x Circular Polarized Antenna
Or
1 x 3.3G 2W Video Transmitter
1 x Circular Polarized Antenna
