SPECIFICATIONS

Brand Name: RADIOMASTER

Origin: Mainland China

Weight: 10g

Package: Yes

Model Number: ELRS 2.4ghz Nano

Compatible Drone Brand: DJI

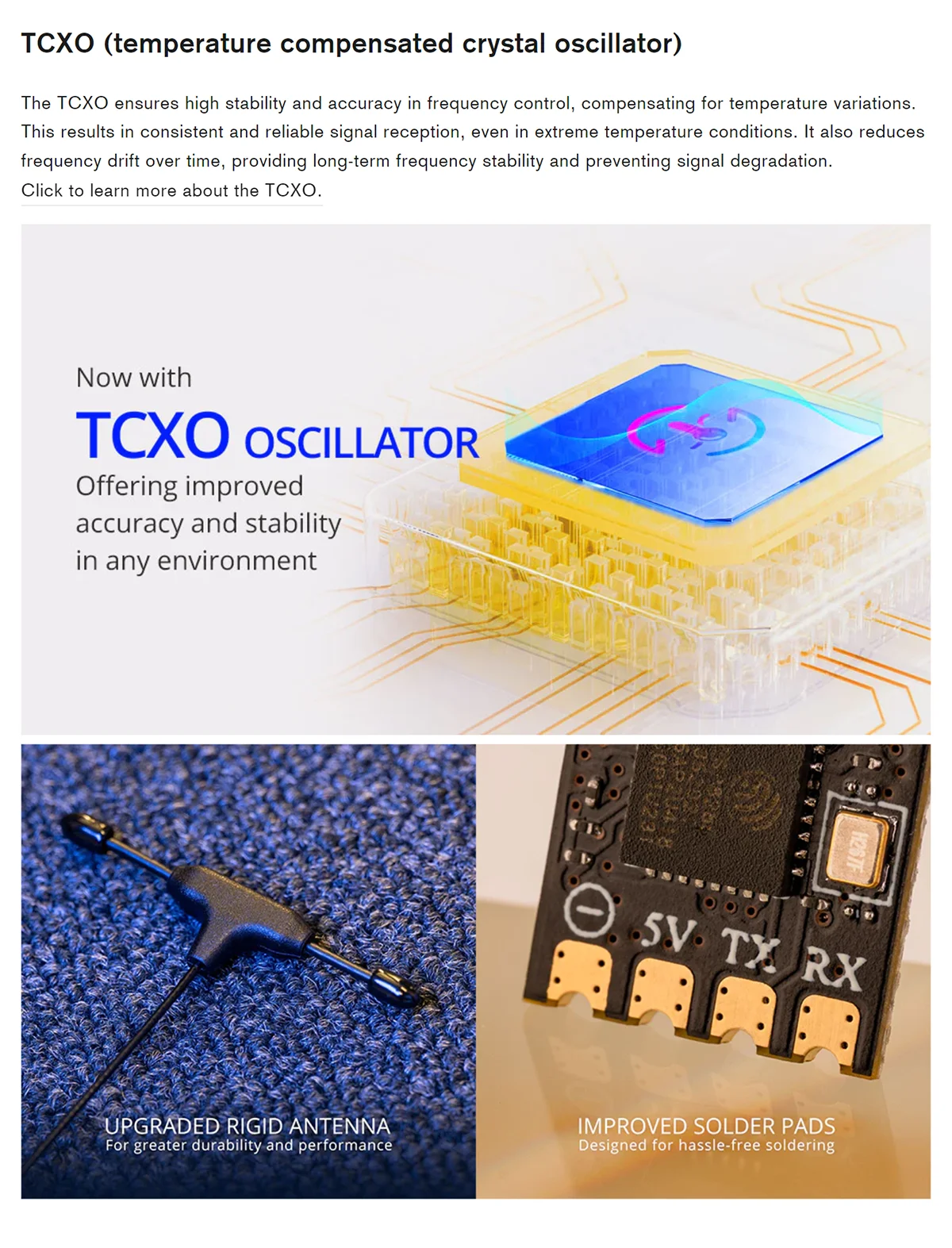

• The RadioMaster RP series receivers are built-in a TCXO (temperature-compensated crystal oscillator) now, which ensures reliable, stable, and accurate signal reception, allowing for superior performance in demanding environments and enhancing the flight experience.

• The RadioMaster RP series of receivers are designed with size, ease of use and range in mind. Utilizing ExpressLRS 2.4ghz Open-source firmware the RP series of nano receivers deliver features and range today's pilots have come to expect.

• Developed around the ESP8285 MCU and SX1280IMLTRT RF Chip the RP series offer Lora and FLRC 2.4ghz RF links offering incredible range and low latency. With Wifi built-in FW updates can be done on your craft without the need to remove the receiver. Binding can be done using a bind phrase meaning no more bind plugs or fiddly button presses while trying to plug in your battery.

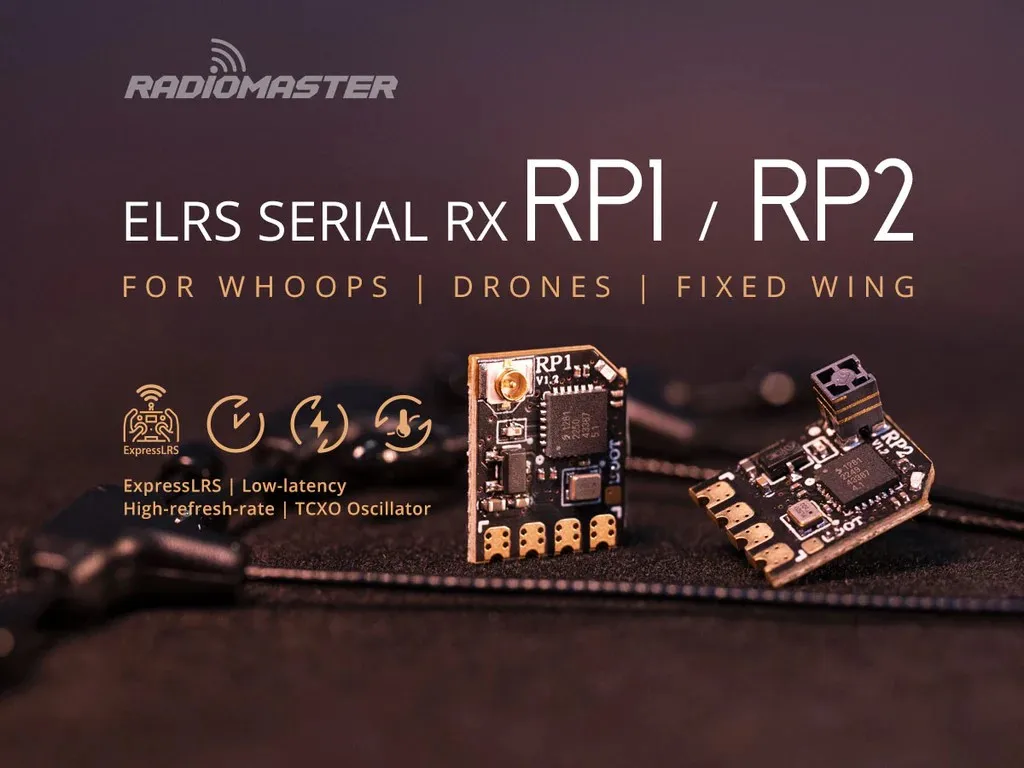

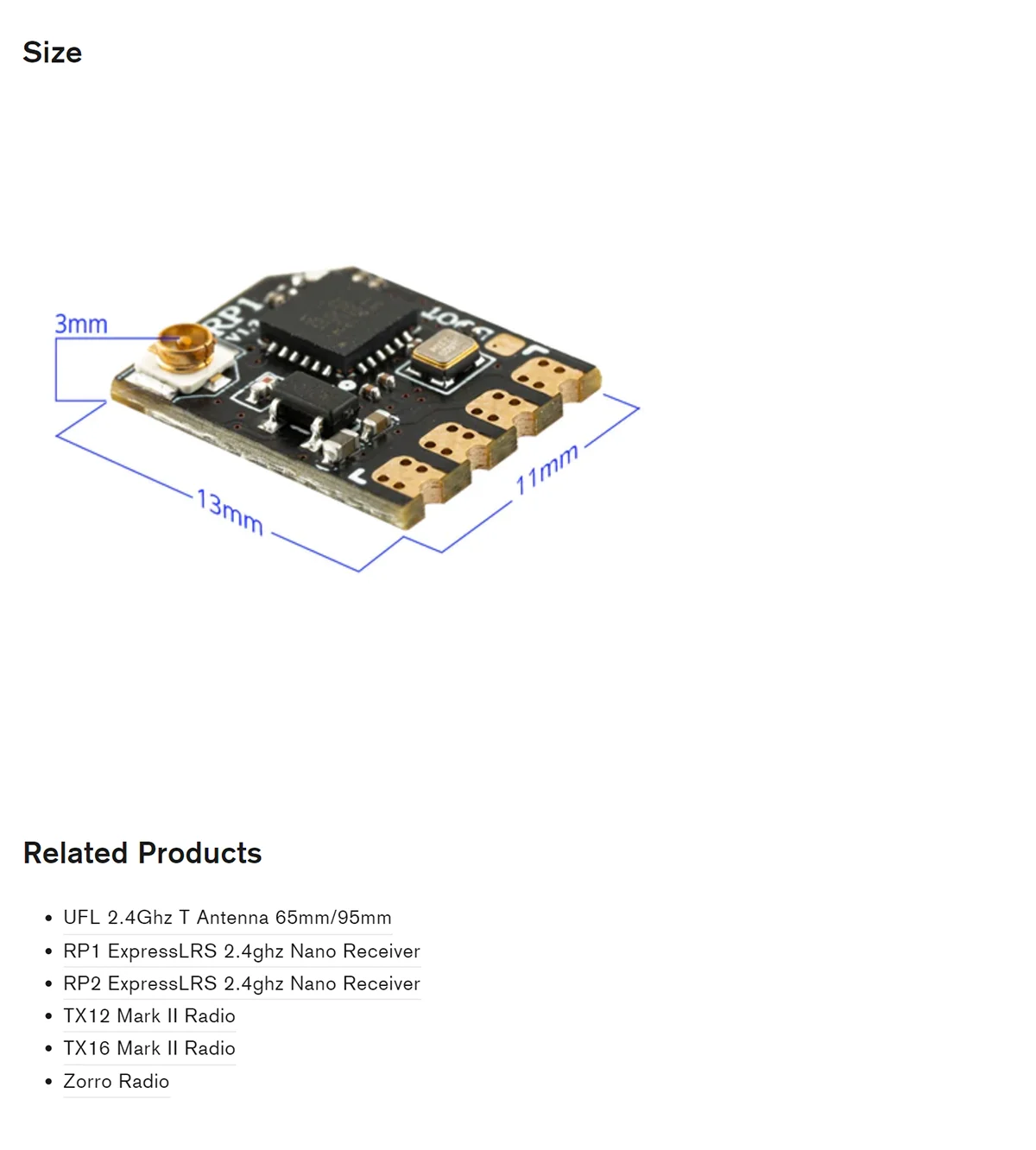

• The RP1 and RP2 2.4GHz ELRS nano series receivers are open-source receivers based on ExpressLRS. The Nano receivers, first developed by Jye Smith from the ExpressLRS development team, feature ESP8285 MCU and SX1280 RF chip. The RP1 has a UFL antenna socket for full-range antenna use. The RP2 has a built-in ceramic antenna which is super light and small in size and ideal for racing.

• The RP1 and RP2 feature WIFI built in so you can upgrade firmware by WIFI and configure the Receiver via the built-in WebUI with your PC or mobile phone.

• Due to the low-latency and high-refresh-rate RF module, the RP1 and RP2 are ideal for FPV races or Long Range. Suitable for many models due to the ultra-light and Nano size, these receivers can fit just about anywhere!

• The RP3 receiver features a Skyworks SE2431L providing an LNA for improved receiver performance, a PA providing up to 100mW of telemetry performance and antenna switching for antenna diversity.

• Featuring dual-channel 2.4GHz radios, the RP4TD excels in signal sensitivity, signal-to-noise ratio, and overall performance due to its optimized circuit design. The reliable DCDC power supply circuit ensures lower operating temperatures during extended usage. Additionally, the dual TCXO contributes to the utmost frequency stability and makes the RP4TD a leader in its class. The RP4TD features built in WIFI so you can wirelessly upgrade firmware to configure the receiver via the built-in WebUI with your PC or mobile phone.

• Suitable for drones and fixed-wing models, the receiver can be installed in virtually any application that requires a serial receiver!

• Improved PCB design is better for heat dissipation.
• Upgraded rigid antenna with greater durability and performance.
• LED on the top side of PCB.
• Solder pads are improved and easier to solder to.
• Built-in a TCXO (temperature compensated crystal oscillator)
• Compatible with all 2.4GHz ExpressLRS modules and transmitters with built in 2.4GHz ExpressLRS

• Optimized PCB design for better heat dissipation.

• LNA for better receiver range.

• PA for better telemetry range.

• Antenna Diversity for improved signal stability and range.

• Built-in a TCXO (temperature compensated crystal oscillator)

• Compatible with all 2.4GHz ExpressLRS modules and transmitters with built in 2.4GHz ExpressLRS

• Gemini mode compatible
• Reliable DCDC Power supply circuit
• Class leading SNR and RSSI performance
• Optimized PCB design for better heat dissipation
• Upgraded antenna with greater durability and performance
• UART pads for extended applications
• Dual TCXO (temperature compensated crystal oscillator)
• 2x 100mw RF Telemetry power output
• Compatible with all 2.4GHz ExpressLRS modules and transmitters with built in 2.4GHz ExpressLRS

• 1 * RP1 ExpressLRS 2.4ghz Nano Receiver
• 1 * 65mm UFL 2.4Ghz T Antenna
• 1 * User Manual
• 1 * CRSF wire

• 1 * RP2 ExpressLRS 2.4ghz Nano Receiver
• 1 * User Manual
• 1 * CRSF wire

• 1 * RP3 ExpressLRS 2.4ghz Nano Receiver
• 2 * 65mm UFL 2.4Ghz T Antenna
• 1 * User Manual
• 1 * CRSF wire

• 1 * RP4TD ExpressLRS 2.4GHz Diversity Receiver
• 1 * CRSF wire
• 3 * Heat-Shrinkable Tube
• 2 * 65mm 2.4GHz T Antenna (Installed on receiver)
• 1 * User Manual
