SPECIFICATIONS

Brand Name: Queen Hobby

Hign-concerned Chemical: None

Is Electric: No battery

Origin: Mainland China

Material: Composite Material

Recommend Age: 14+y

RC Parts & Accs: Transmitters

For Vehicle Type: Airplanes

Use: Vehicles & Remote Control Toys

Remote Control Peripherals/Devices: RECEIVERS

Tool Supplies: sticker

Technical parameters: Value 4

Model Number: VTX 2.5W /1.6W

Choice: yes

Package including :

Send by your choice



Note: If you want to use 4.9G and 5.8G bands at the same time, please use an antenna and VRX that can cover the frequency from 4.9Ghz-5.8Ghz . If the antenna and VRX cannot cover all bands, you may need to use different antenna and receiver when using 4.9G and 5.8G.

Description:

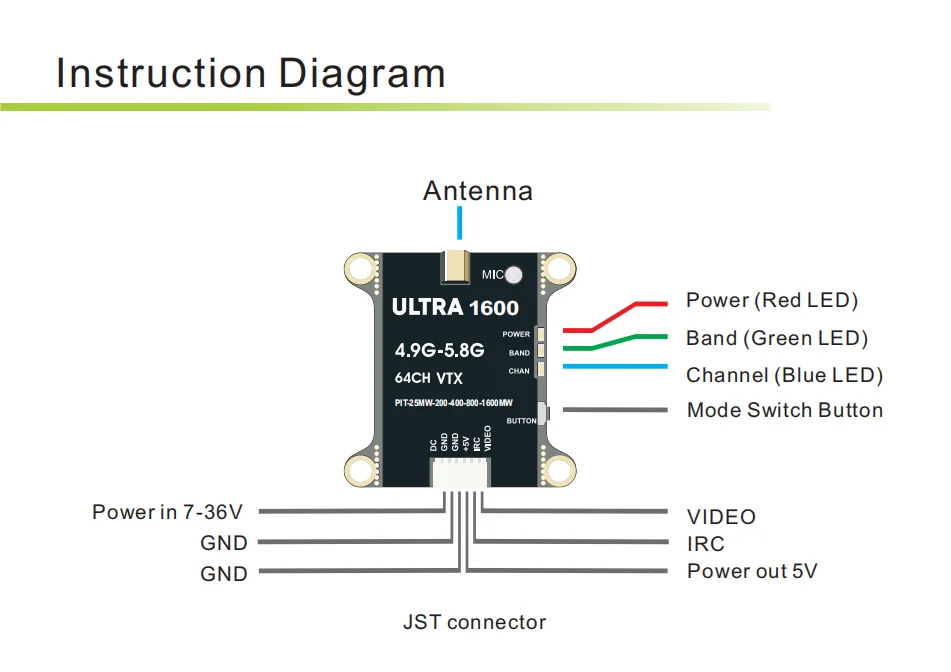

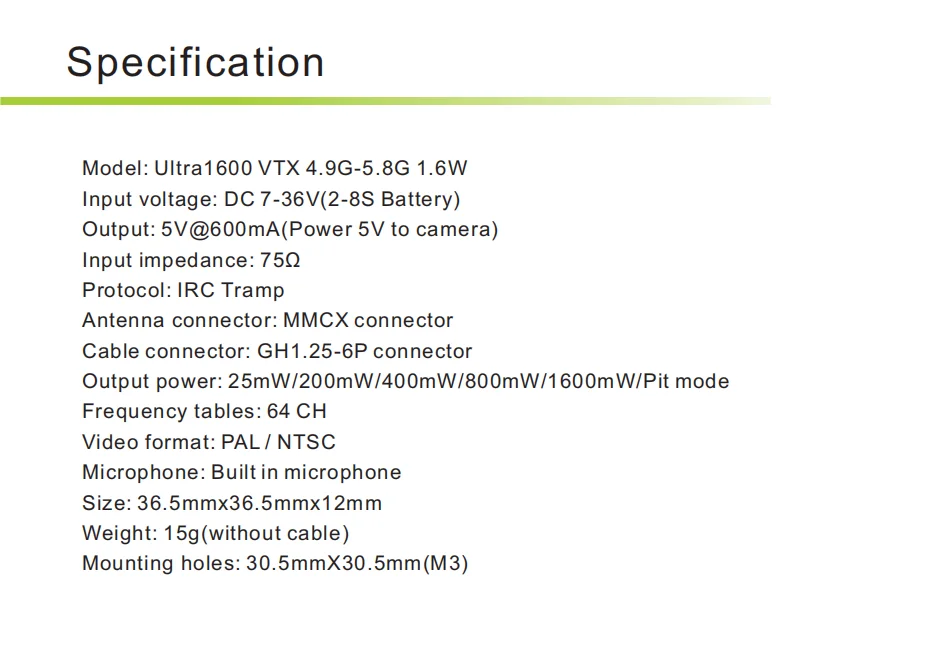

Model: Ultra1600 VTX 4.9G-5.8G 1.6W

Input voltage: DC 7-36V(2-8S Battery)

Output: 5V@600mA(Power 5V to camera)

Input impedance: 75Ω

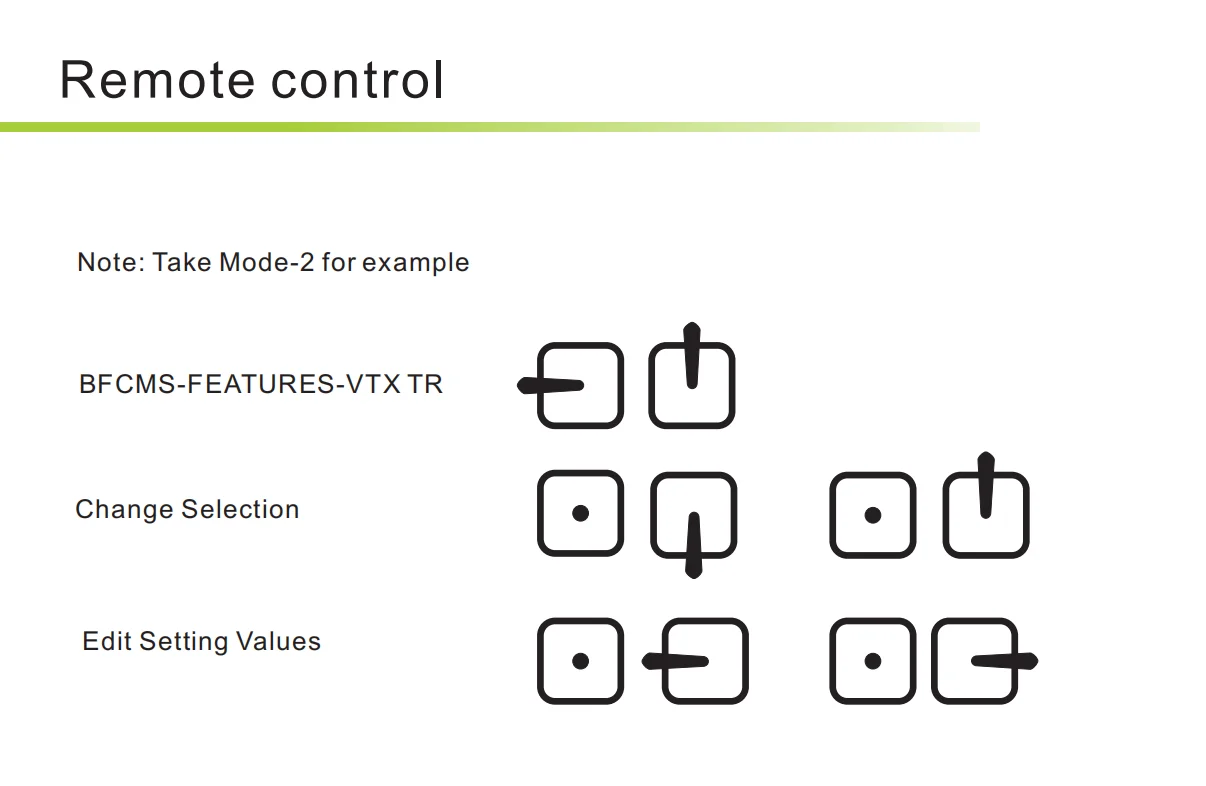

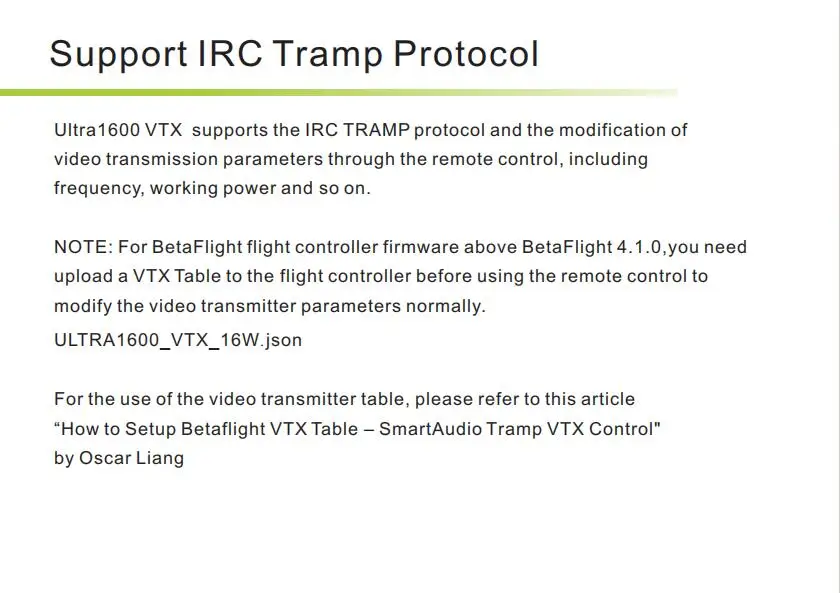

Protocol: IRC Tramp

Antenna connector: MMCX connector

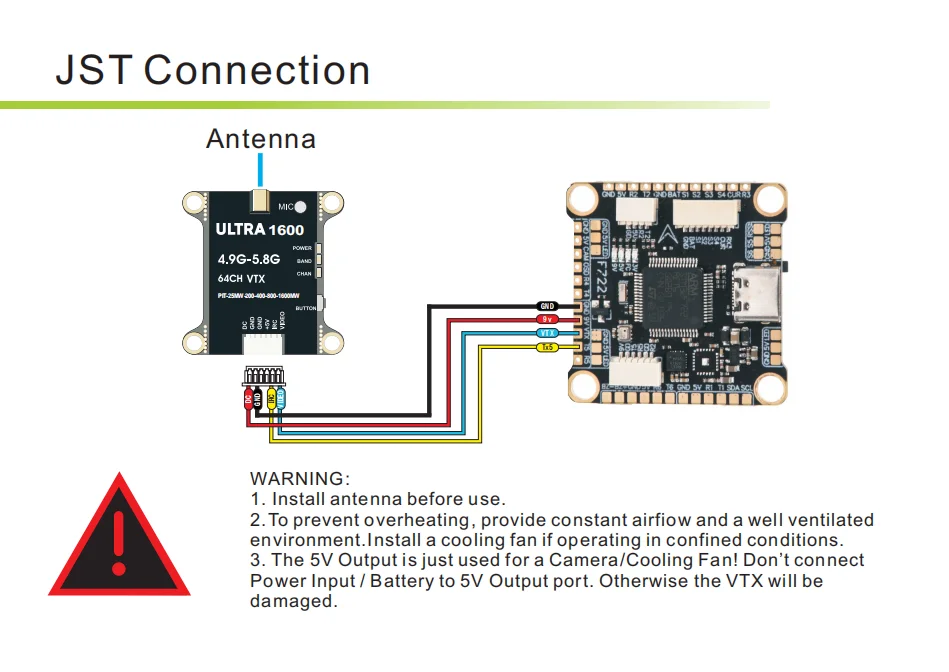

Cable connector: GH1.25-6P connector

Output power: 25mW/

400mW/800mW/1600mW/Pit mode

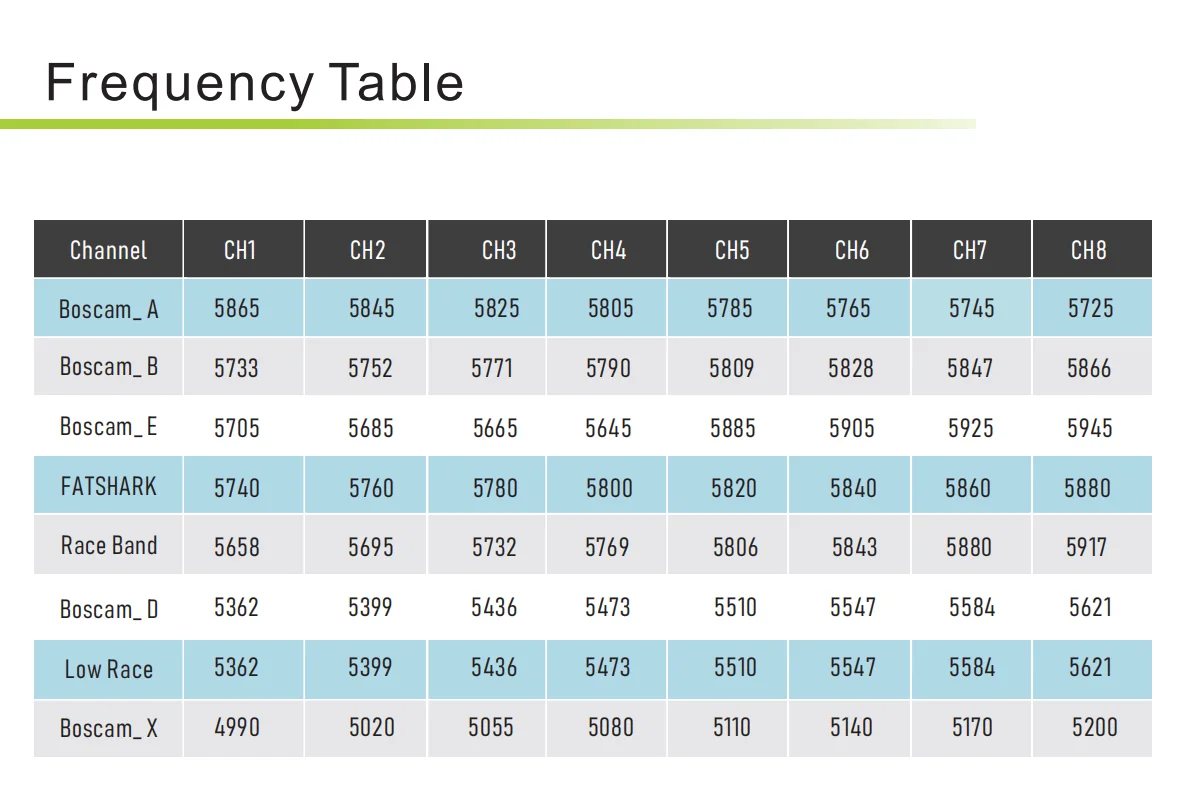

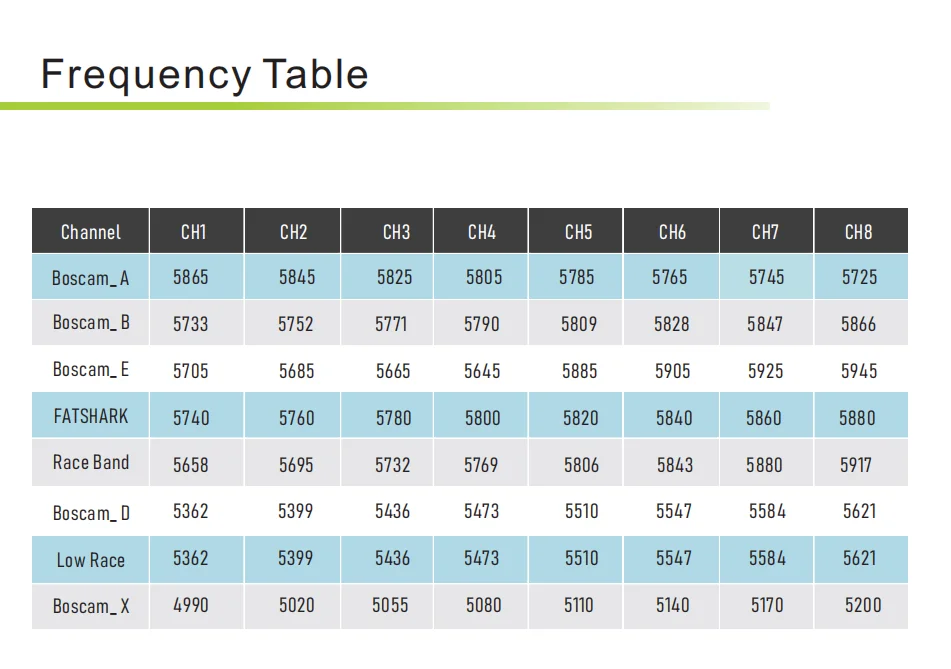

Frequency tables: 64 CH

Video format: PAL / NTSC

Microphone: Built in microphone

Size: 36.5mmx36.5mmx12mm

Weight: 15g(without cable)

Mounting holes: 30.5mmX30.5mm(M3)

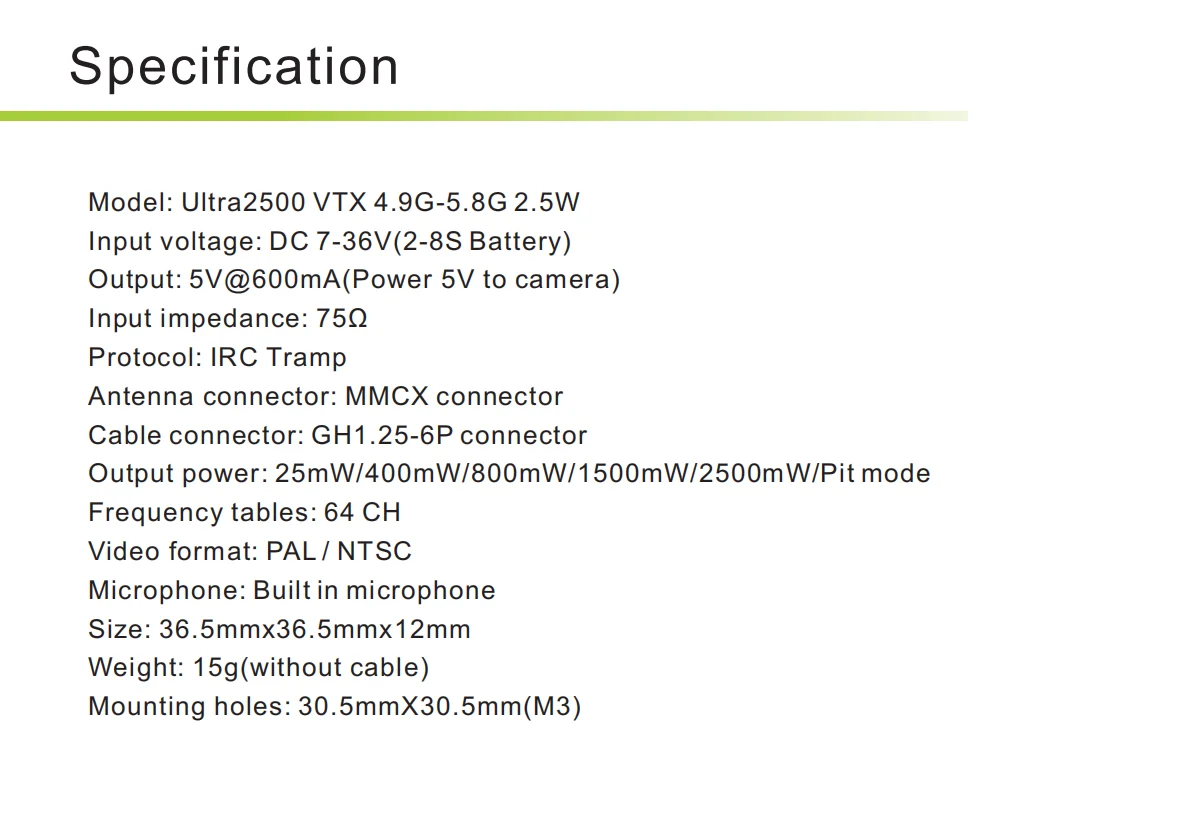

64CH 4.9G-5.8G 2.5W FPV VTX:



Mountingholes: 30.5mmX30.5mm(M3)



Weight: 15g(withoutcable)



Size: 36.5mmx36.5mmx12mm



Microphone: Built in microphone



Videoformat: PAL / NTSC



Frequencytables: 64 CH



Outputpower: 25mW/400mW/800mW/1500mW/2500mW/Pit mode

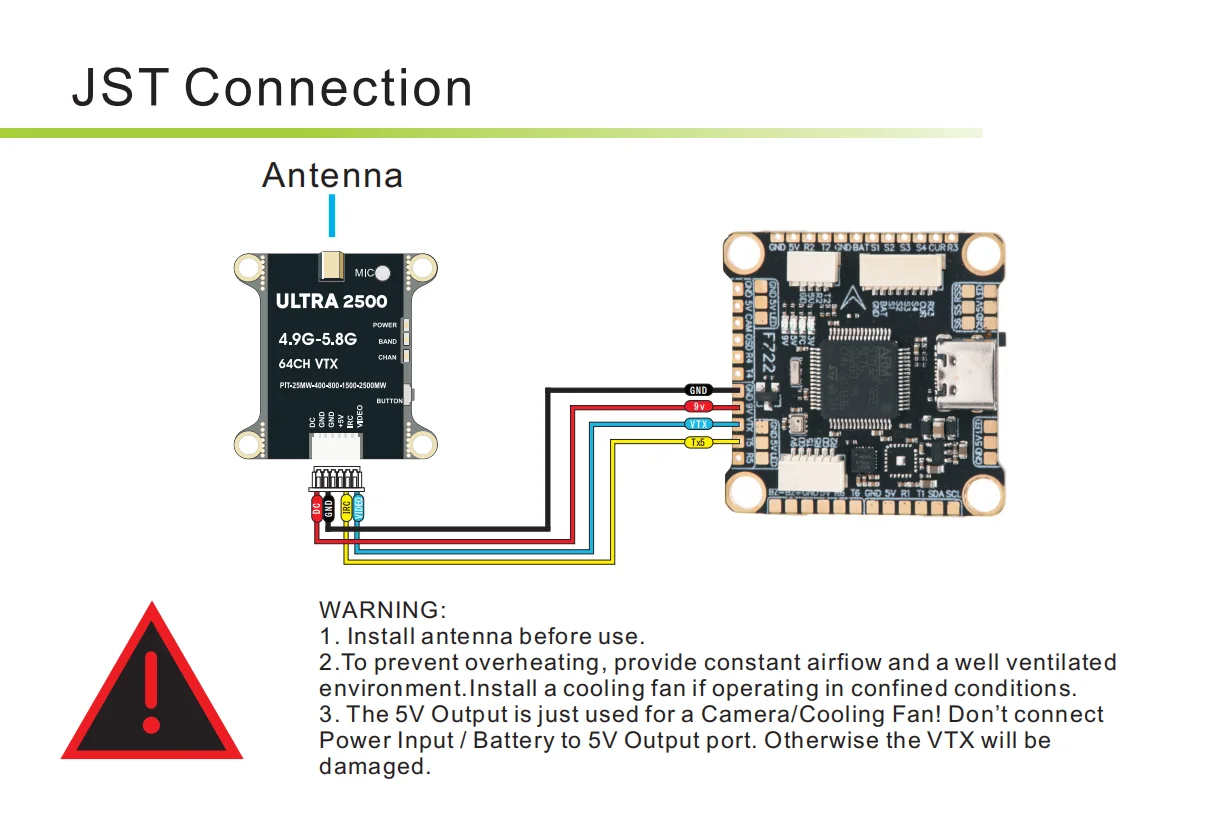

Cable connector: GH1.25-6P connector



Antennaconnector: MMCX connector



Protocol: IRCTramp



Inputimpedance: 75Ω



Output: 5V@600mA(Power5Vtocamera)



Inputvoltage: DC 7-36V(2-8S Battery)



Model: Ultra2500 2.5W VTX
