Lumenier AXII 2 5.8GHz 2.2dBi Gain FPV Antenna Straight Right-Angle Stubby/Double Long Range SMA Antenna for RC Drone FPV Goggle
Color
SPECIFICATIONS
Brand Name: PHISITAL
Is Electric: No battery
Origin: Mainland China
Material: plastic
Recommend Age: 14+y
RC Parts & Accs: Antennas
For Vehicle Type: Helicopters
Use: Vehicles & Remote Control Toys
Upgrade Parts/Accessories: Lithium Battery
Remote Control Peripherals/Devices: Remote Controller
Tool Supplies: Assembled class
Four-wheel Drive Attributes: Assemblage
Choice: yes
semi_Choice: yes
Overview:
The Lumenier AXII is known to be the most versatile and highest performing antenna line for FPV today. Lumenier has been able to improve on the best and make it even better!
Improved Features:
Significantly Improved ran≥ with a Higher Gain (2.2dBic Gain)
Wider Bandwidth (5.3-6.2GHz)
Cleaner Signal And Better Rejection to Interference
More Durable - Improved Injection Molded Housing
Virtually Perfect Axial Ratio
While almost every aspect of the AXII 2 was improved upon, the size and weight managed to stay the same. The AXII 2 is still one of the smallest and lightest circular polarized antennas on the market, perfect for both lightweight racing builds or freestyle quads.
The AXII 2 comes in many connector types such as SMA, MMCX, U.FL, Stubby SMA, and Long SMA. engineering has giv en this antenna a virtually perfect 1.0 Axial ratio resulting in a true circularity. On top of that, the AXII 2 has an amazing max gain of 2.2dBic, a true upgrade over the original AXII.
Sup&er Tough
Antennas take a lot of abuse, especially when put onto a quad. The AXII 2's robust antenna housing is made out of injected molded polycarbonate, significantly improving durability compared to the original AXII housing. The flexible 45mm long RG178 cable allows for complete freedom in placement.
Note: When installing, secure the antenna via the SMA connector, do not the cap.
Brand Name: Lumenier
Item Name: AXII
Specifications

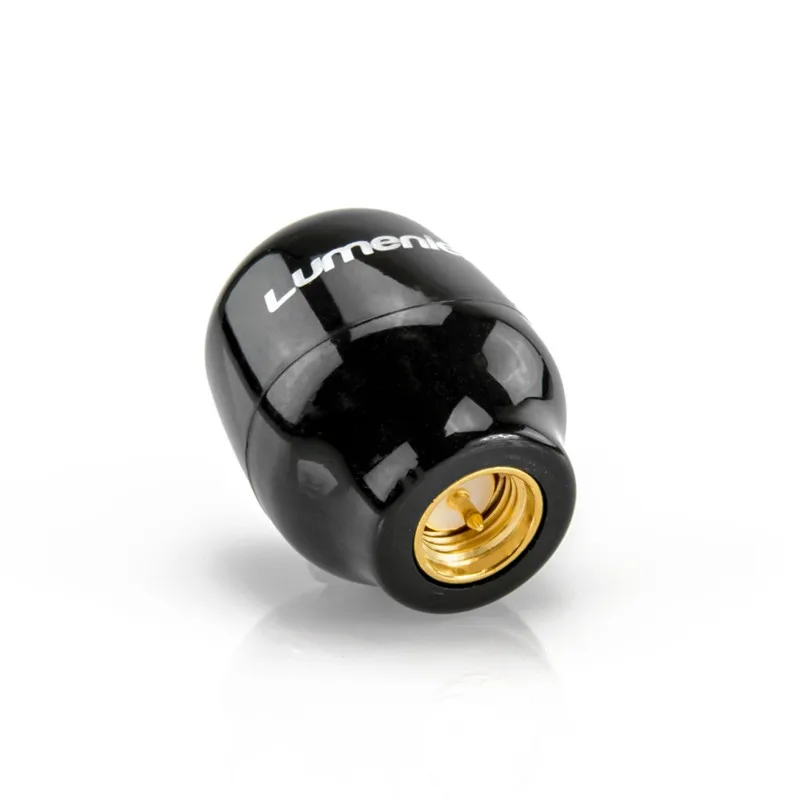

Stubby SMA
Gain: 2.2dbic
Axial ratio: 1.0 (near perfect)
Bandwidth: 5.3GHz-6.2GHz
Radiation Efficiency: 98%
SWR: <=1.5:1
Weight: 4.8g
Size: 22.1mm x 17.5mm
Cable: None
Connector: SMA
Works great as both a transmitting or receiving antenna
Compatible with other styles of 5.8GHz RHCP antennas
Specifications

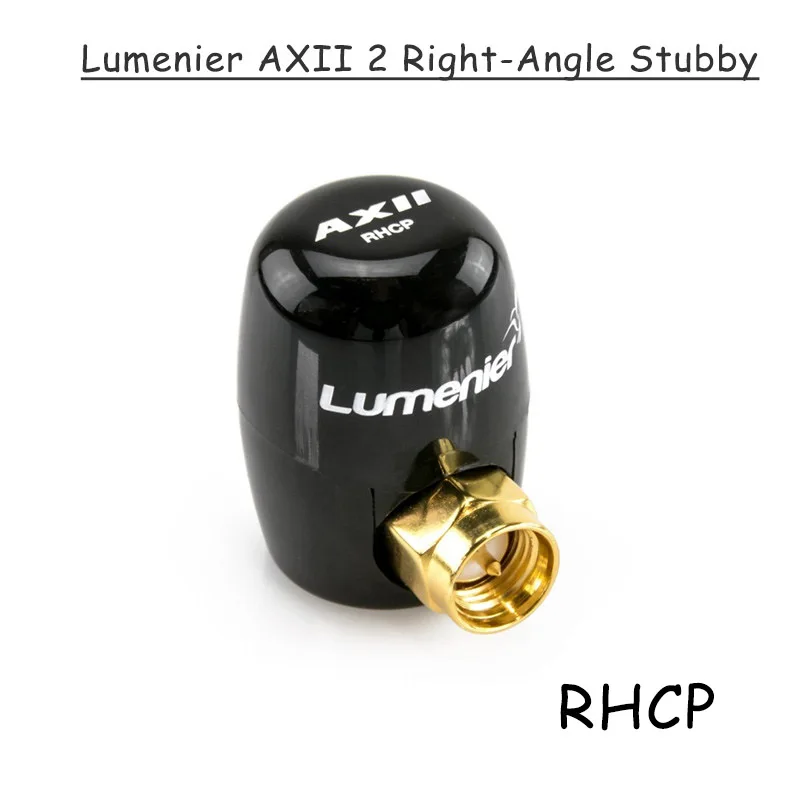

Stubby Right-Angle SMA
Gain: 2.2dbic
Axial ratio: 1.0 (near perfect)
Bandwidth: 5.3GHz-6.2GHz
Radiation Efficiency: 98%
SWR: <=1.5:1
Weight: 6.7g
Size: 23.6mm x 17.5mm
Cable: None
Connector: Right-Angle SMA
Works great as both a transmitting or receiving antenna
Compatible with other styles of 5.8GHz RHCP antennas
Specifications

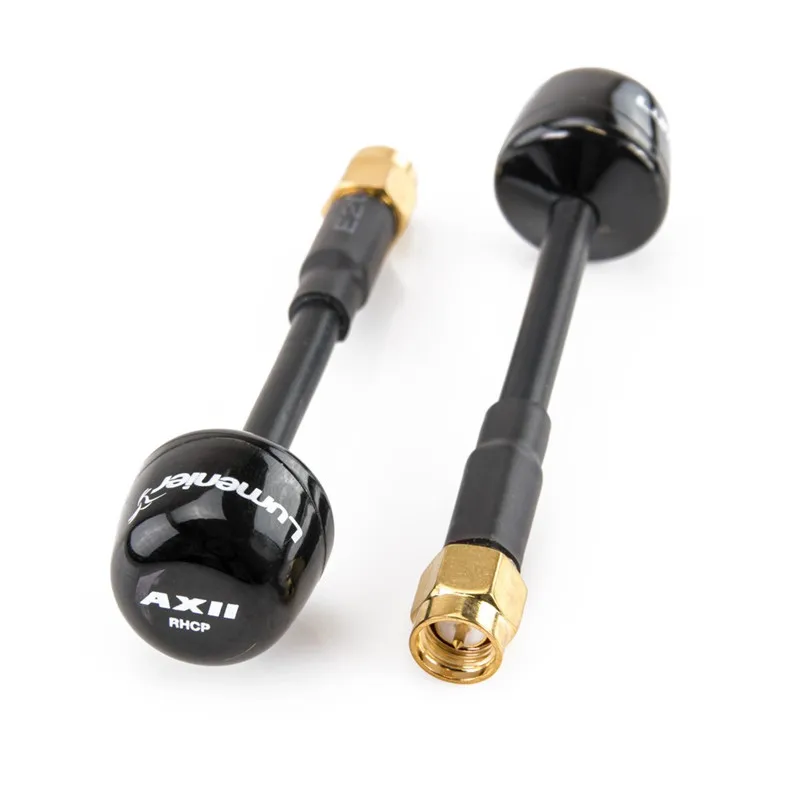

SMA plug
Gain: 2.2dbic
Axial ratio: 1.0 (near perfect)
Bandwidth: 5.3GHz-6.2GHz
Radiation Efficiency: 98%
SWR: <=1.5:1
Weight: 7.8g
Size: 73mm x 17.5mm
Cable: Semi-rigid RG402
Connector: SMA
Works great as both a transmitting or receiving antenna
Compatible with other styles of 5.8GHz RHCP antennas
Specifications

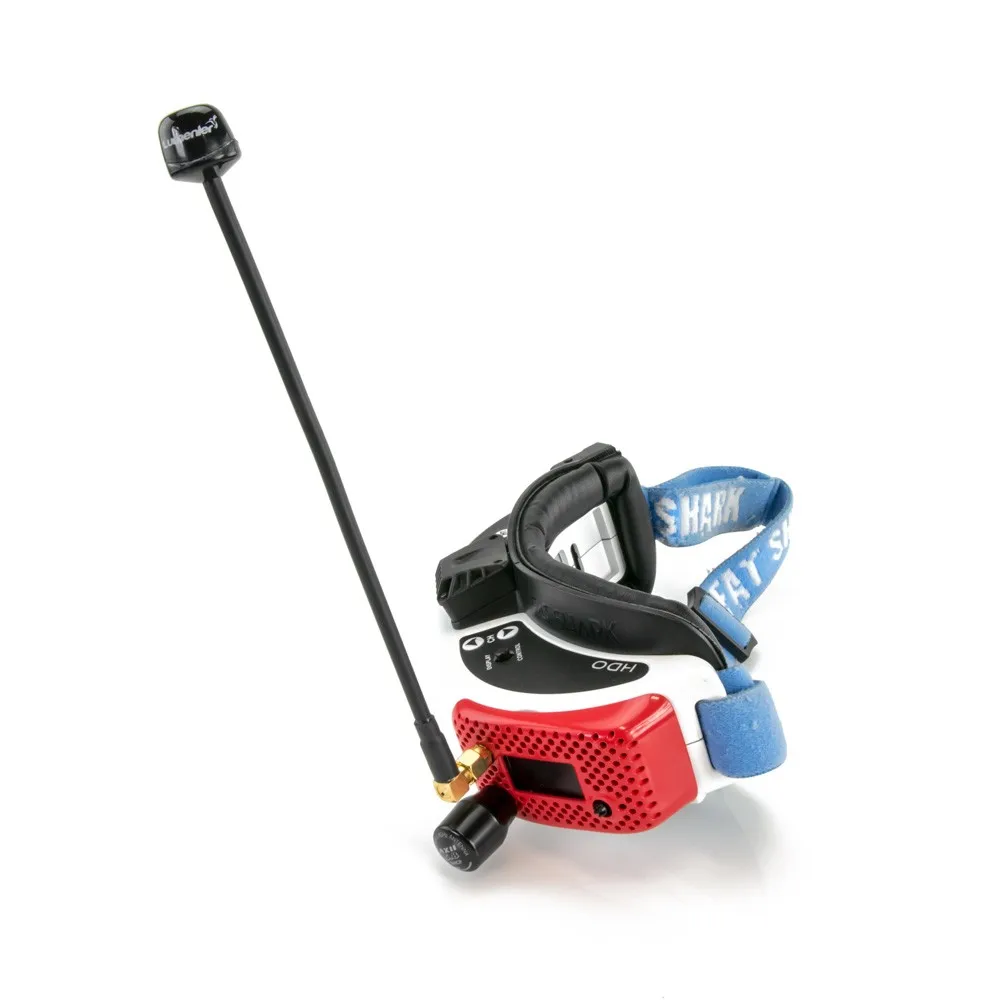

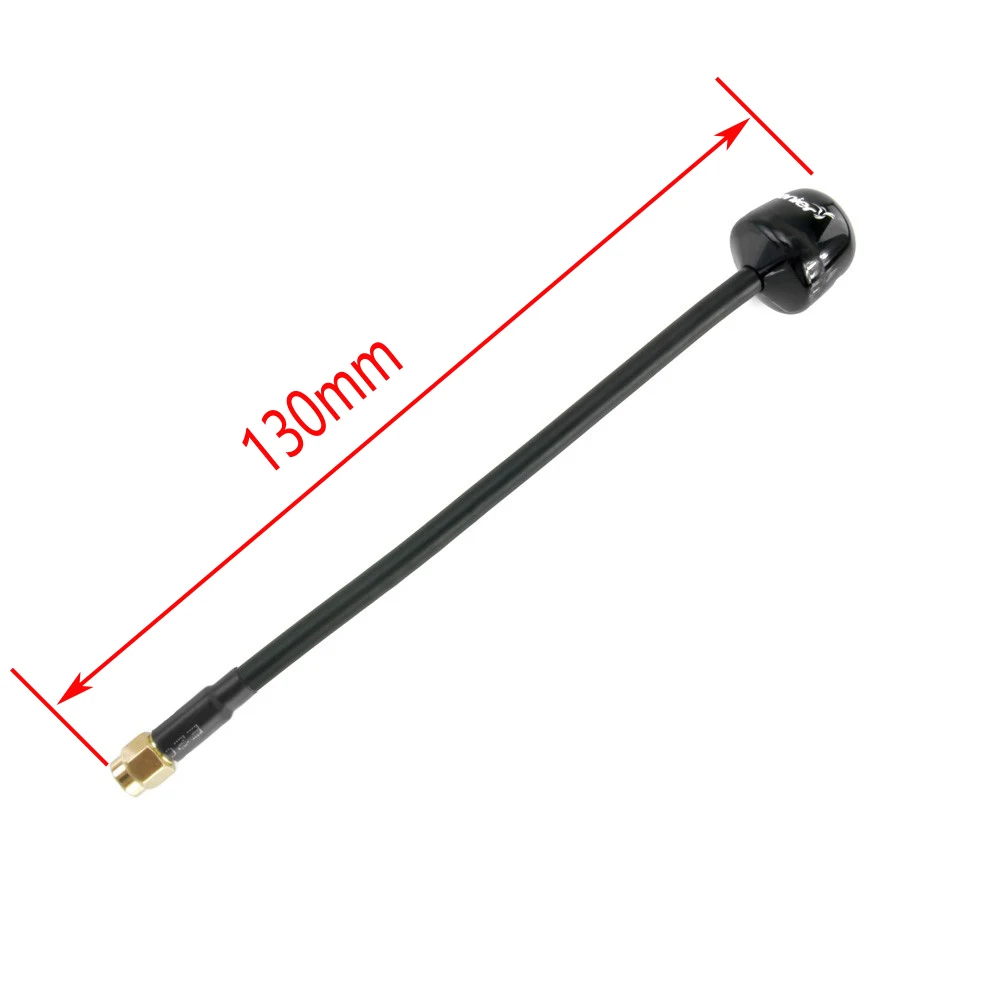

SMA LONG plug
Gain: 2.2dbic
Axial ratio: 1.0 (near perfect)
Bandwidth: 5.3GHz-6.2GHz
Radiation Efficiency: 98%
SWR: <=1.5:1
Weight: 10.8g
Size: 130mm x 17.5mm
Cable: Semi-rigid RG402
Connector: SMA
Works great as both a transmitting or receiving antenna
Compatible with other styles of 5.8GHz RHCP antennas
Specifications
Right-Angle SMA LONG plug
Gain: 2.2dbic
Axial ratio: 1.0 (near perfect)
Bandwidth: 5.3GHz-6.2GHz
Radiation Efficiency: 98%
SWR: <=1.5:1
Weight: 15.8g
Size: 188mm x 17.5mm
Cable: Semi-rigid RG402
Connector: Right-Angle SMA
Works great as both a transmitting or receiving antenna
Compatible with other styles of 5.8GHz RHCP antennas
Specifications
Double Right-Angle SMA plug
Gain: 4.7dBiC
Axial ratio: 1.0 (near perfect)
Bandwidth: 5.3GHz-6.2GHz
Radiation Efficiency: 98%
SWR: <=1.5:1
Weight: 17g
Size: 190mm x 17.5mm
Cable: Semi-rigid RG402
Connector: Right-Angle SMA
Specifications
Double Straight SMA plug
Gain: 4.7dBiC
Axial ratio: 1.0 (near perfect)
Bandwidth: 5.3GHz-6.2GHz
Radiation Efficiency: 98%
SWR: <=1.5:1
Weight: 12g
Size: 130mm x 17.5mm
Cable: Semi-rigid RG402
Connector: Straight SMASpecifications
Frequency: 5.8GHz
Bandwidth: 220 Mhz
Gain: 8.4 dBiC
Beam Width: 76°
Right Hand Circularly Polarized
SMA Connector (Fits Fat shark Goggles and others using SMA)
Dimensions: 35mm x 35mm x 9mm (20mm with SMA)
Weight: 10grams
Includes
1x Lumenier AXII Patch Antenna 5.8GHz (RHCP)
