IFlight Albatross V2 SMA 5.8GHz 2.4dBi Antenna LHCP RP SMA / RHCP SMA 60MM/100MM/150MM for FPV Racing Drone part
Color:
Color
Quantity:
SPECIFICATIONS
Brand Name: NoEnName_Null
Is Electric: No battery
Origin: Mainland China
Material: Composite Material
Recommend Age: 14+y
RC Parts & Accs: Antennas
Size: NA
For Vehicle Type: Airplanes
Use: Vehicles & Remote Control Toys
Certification: CE
Upgrade Parts/Accessories: 5.8GHz 2.4dBi Antenna
Remote Control Peripherals/Devices: Remote Controller
Tool Supplies: Assembled class
Quantity: 1 pcs
Technical parameters: KV1100
Model Number: IFlight Albatross V2 SMA
Four-wheel Drive Attributes: Assemblage
Wheelbase: Screws
Choice: yes
semi_Choice: yes

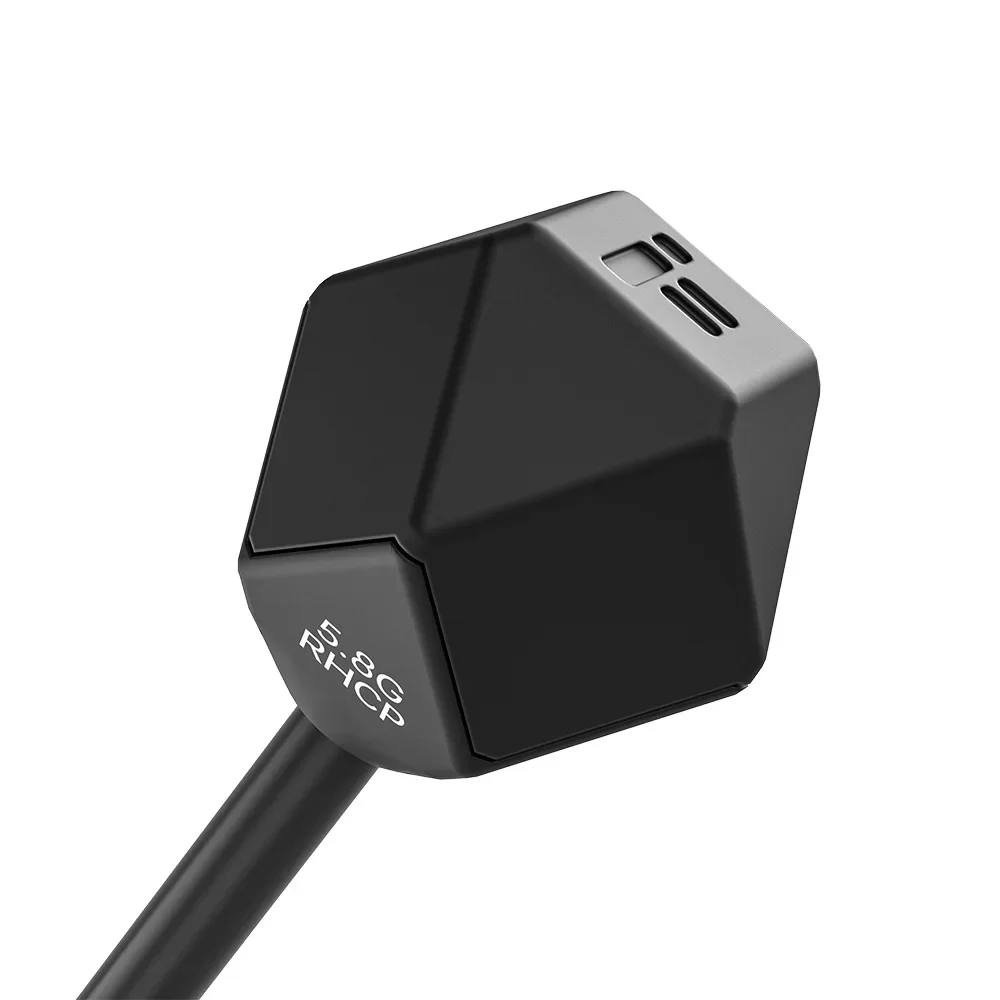

- The new Albatross V2 adopts a futuristic and rugged design language, with a hexagonal shape that makes it more secure and a right angle design that is more convenient to fix.
- 2. Traditional buckle or adhesive processes are prone to problems such as antenna loosening or detachment, while the Albatross V2 uses ultrasonic welding technology to make the antenna more lightweight and reliable.
- 3. The use of FPC and PCB technology enhances the gain consistency of the antenna, thereby improving its performance and stability.
- Durable 5.8G antenna for Analog or Digital FPV.
Specifications:
- Model: Albatross V2 5.8GHz SMA RHCP FPV Antenna
- Frequency range: 5.3GHz-6GHz
- Maximum gain:2.65dBi (5695MHz)
- Minimum gain:2.06dBi (5362MHz)
- Average gain:2.4dBi
- Maximum standing wave ratio: 1.76 (5917MHz)
- Minimum standing wave: 1.46 (5621MHz)
- Average standing wave ratio: 1.75
- Maximum radiation efficiency: 86% (5436MHz)
- Minimum radiation efficiency: 76% (5917MHz)
- Average radiation efficiency: 83%
- Polarization method: right-handed polarization RHCP
- Cross polarization suppression: -25dB Axis ratio: ≤ 3
- Weight: 7g (60mm)/9.5g (100mm)/11.5g (150mm)
