FPVKING NO blue 7" LCD Color 1024*600 FPV Monitor Video Screen 7 inch Rc car Multicopter DJI Phantom ZMR250 QAV250 racing drone
Color
SPECIFICATIONS
Brand Name: fpvking
Hign-concerned Chemical: None
Is Electric: No battery
Origin: Mainland China
Material: Metal
Recommend Age: 14+y
RC Parts & Accs: Transmitters
For Vehicle Type: Airplanes
Use: Vehicles & Remote Control Toys
Upgrade Parts/Accessories: Adapter
Remote Control Peripherals/Devices: RECEIVERS
Tool Supplies: Cutting
Technical parameters: Value 2
Model Number: 1024*600Monitor
Four-wheel Drive Attributes: Assemblage
Choice: yes

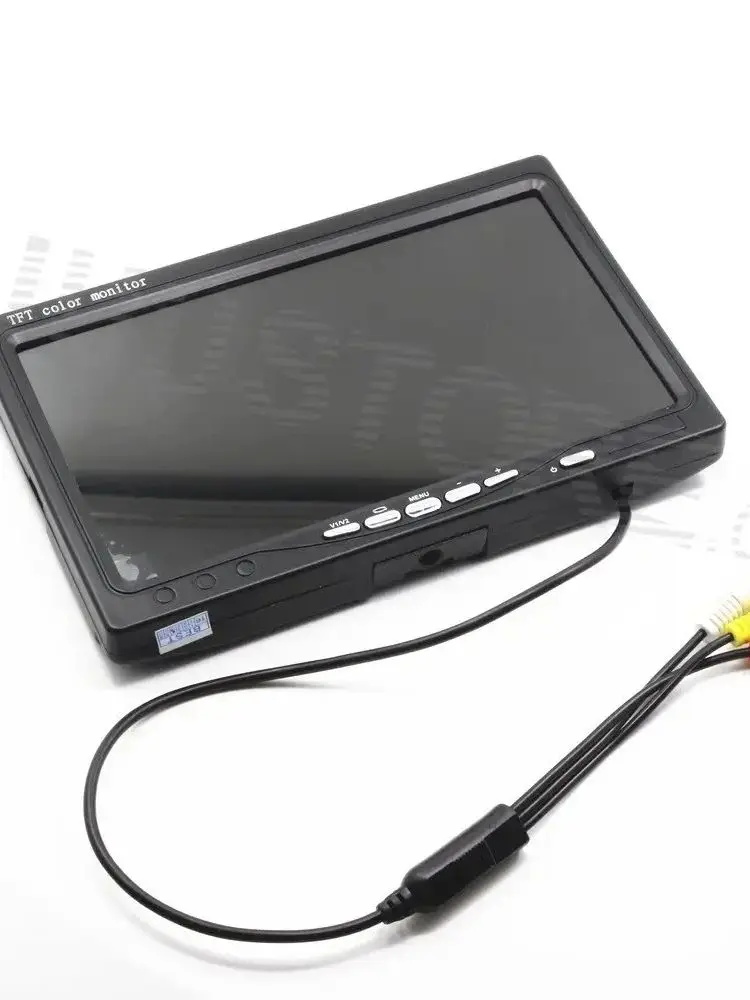

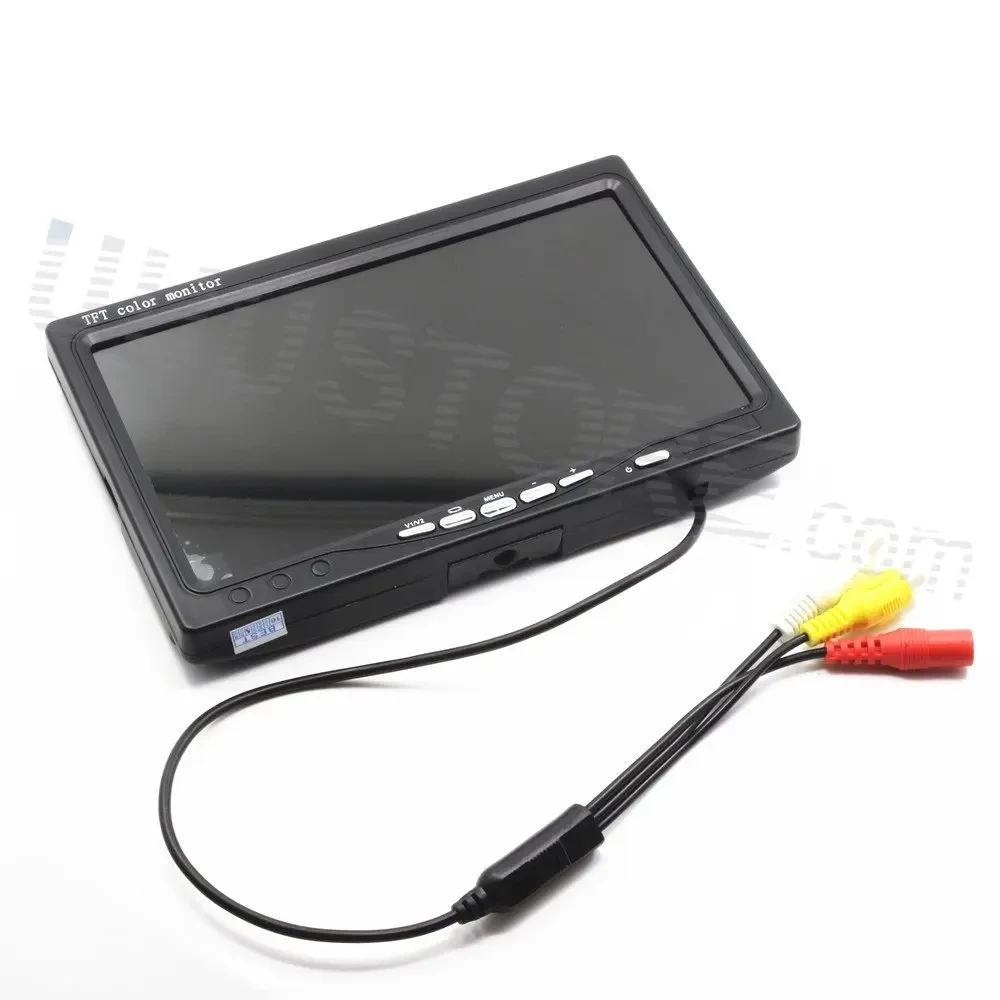

7'' LCD Color 1024x600 FPV Monitor No blue screen for Rc Multicopter DJI Phantom Ground Station QAV250
If you are looking for the ideal LCD monitor for your FPV ground station or any other form of aerial videography, the monitor is your best choice! Designed specifically for FPV use and outdoor conditions, a foldable screen shroud is included for optimal viewing. This monitor has a very bright image which is fully adjustable, and a wide power supply voltage range (DC 7.4~35V).
The most important feature of the monitor for FPV users is that it does not switch to the ''blue screen'' when the signal gets weak. This allows you to fly much further without losing the image. When there is no video input, the monitor just shows static, it never turns blue or black.
Features:
• 7.0 inch TFT LCD Display
• Ideal for use with FPV
• 1024 x 600 High Resolution Display
• LED Backlight
• 16:9 Display Ratio
• 15ms Response Time
• 500:1 Contrast Ratio
• Wide 6~18V DC Input Voltage Range
Specs:
Panel Size: 7.0 inch
Panel Type: TFT LCD
Resolution: 1024x600
Backlight: LED
Horizontal Frequency Range: 30~60kHz
Field Frequency Range: 50~75Hz
Dot Pitch: 0.0642 (W) x 0.1790 (H) mm
Display Ratio: 16:9
Brightness: 500 cd/m²
Contrast Ratio: 500:1
Response Time: 15ms
Viewing Angle: 70°/70° (L/R) 50°/60° (U/D)
Input Voltage: DC 7.4~35V (suggest 3S battery)
Power Consumption: ≤ 5W
Working Temperature: -20°C ~ 60°C
Storage Temperature: -30°C ~ 70°C
Dimensions: 182 x 127 x 32mm
Weight: 363g
