SPECIFICATIONS

Technical parameters: Value 5

Brand Name: Readytosky

Quantity: 1 pcs

Four-wheel Drive Attributes: Motors

Use: Vehicles & Remote Control Toys

Material: Composite Material

Tool Supplies: Cutting

Remote Control Peripherals/Devices: RECEIVERS

For Vehicle Type: Airplanes

RC Parts & Accs: Antennas

Origin: Mainland China

Recommend Age: 14+y

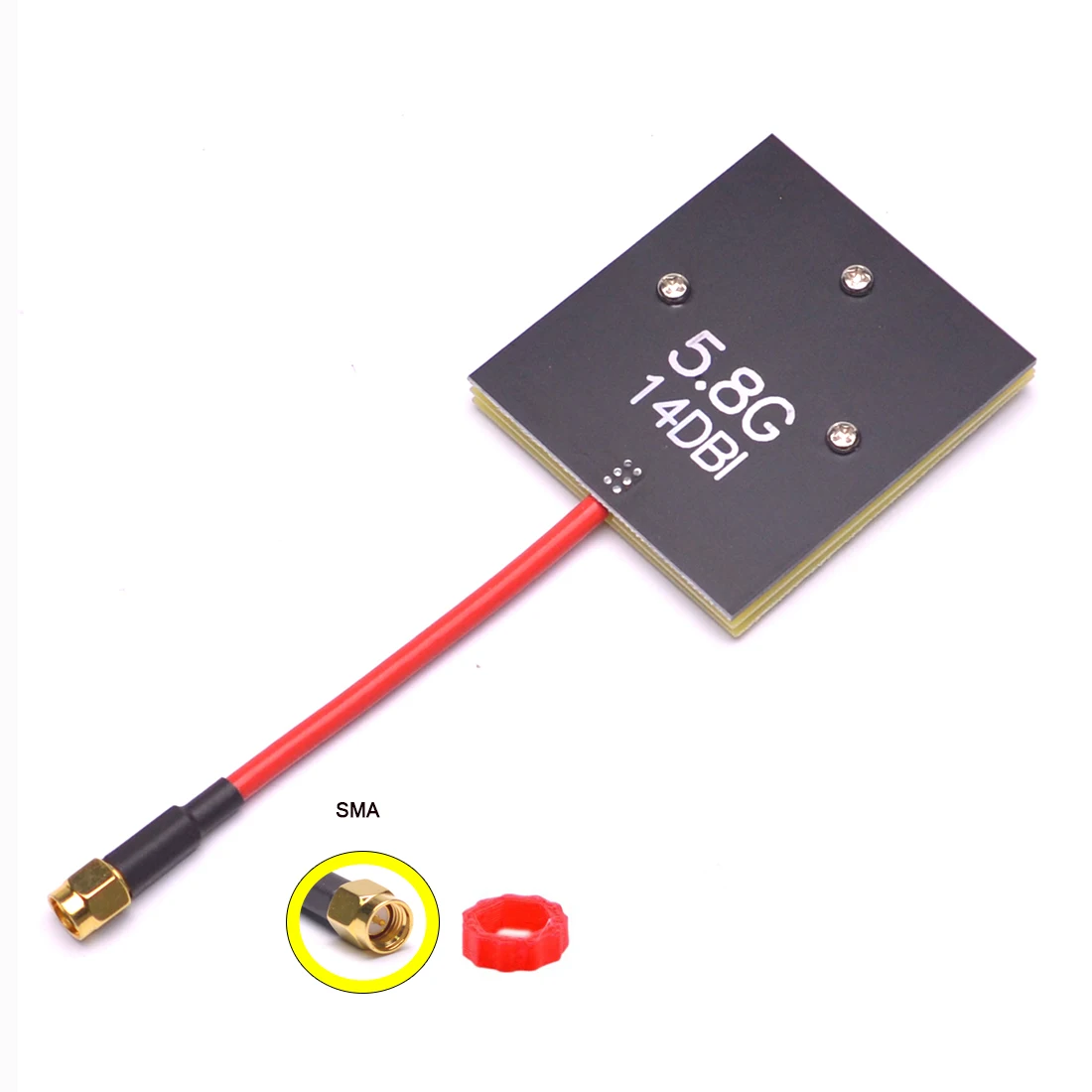

Specially designed for RC FPV, mini size, high gain, low SWR and high self recovery function at any angle.

Transmitting distance: 15km with 5.8G 1200mw VTX/RX.

5km with 5.8G 600mw VTX/RX.

Frequency: 5600-5950MHz

Gain-dBi: 14dBi

3db vertical beamwidth: 40 degree

3db horizontal beamwidth: 35 degree

Impedance: 50ohm

Polarization: Vertical

Sidelobe suppression>=13DB

VSWR: <=1.5

Front-to-back ratio: >=25DB

Maximum power: 50W

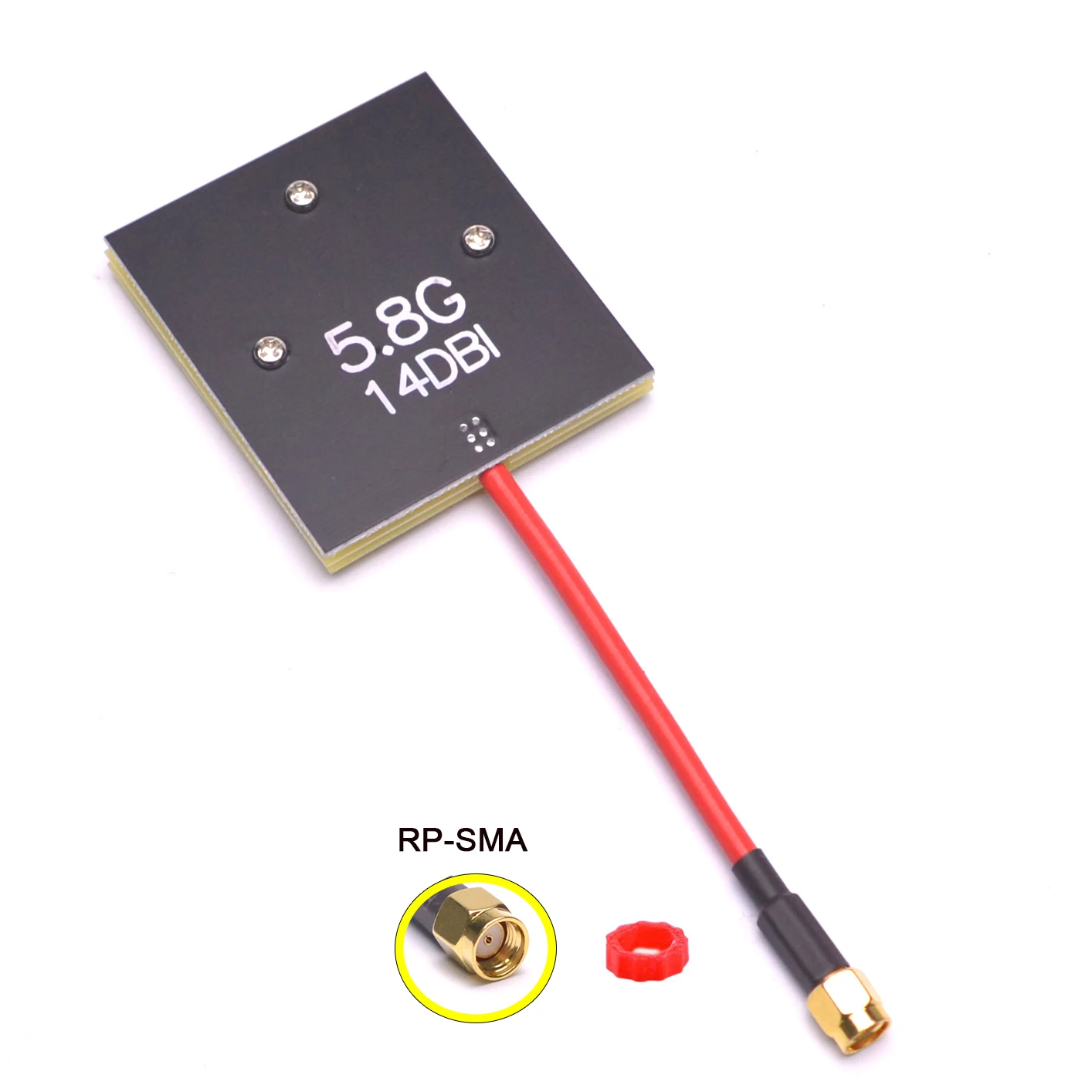

Connector: RP-SMA

DC grounded.

High self recovery function.

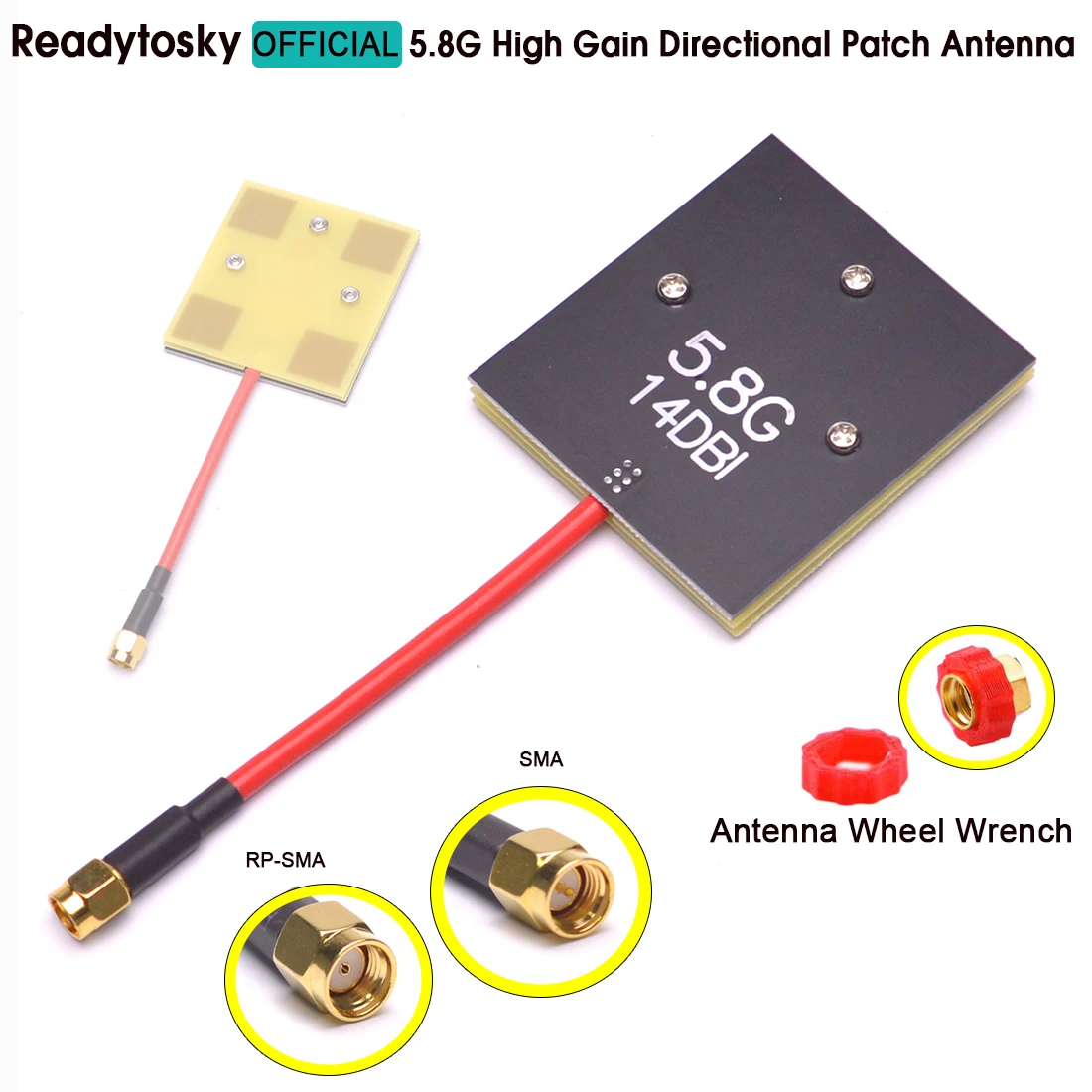

1pc X 14dbi antenna ( SMA or RP-SMA send it as you choice)

1pc x 3D Printed Printing TPU Antenna Wheel Anti-skid Tightening Wrench
