SPECIFICATIONS

Brand Name: NoEnName_Null

Hign-concerned Chemical: None

Is Electric: No battery

Origin: Mainland China

Material: Composite Material

Recommend Age: 14+y

RC Parts & Accs: RECEIVERS

Size: NA

For Vehicle Type: Airplanes

Use: Vehicles & Remote Control Toys

Certification: CE

Upgrade Parts/Accessories: ELRS 2.4G PWM 7CH CRSF Receiver

Remote Control Peripherals/Devices: Remote Controller

Tool Supplies: Assembled class

Quantity: 1 pcs

Technical parameters: KV1100

Model Number: ELRS 2.4G PWM 7CH CRSF Receiver

Four-wheel Drive Attributes: Assemblage

Wheelbase: Bottom Plate

Choice: yes

semi_Choice: yes

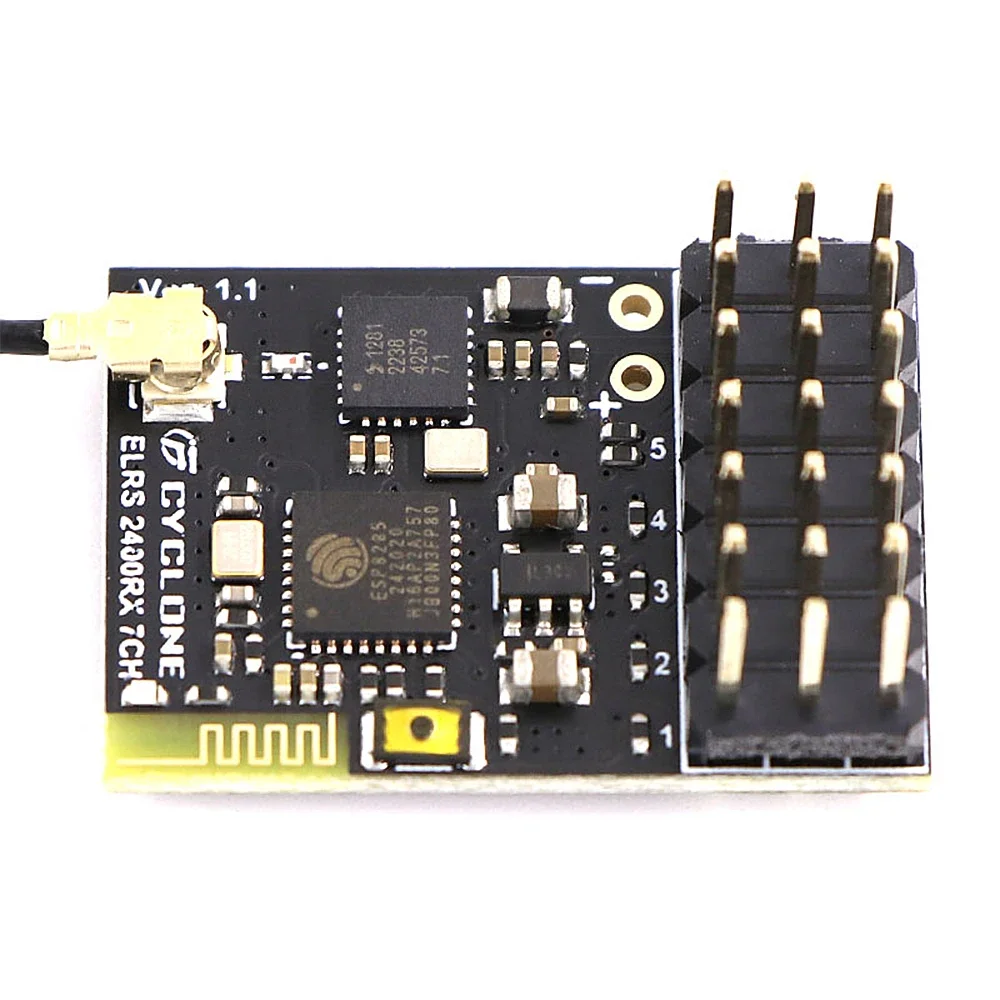

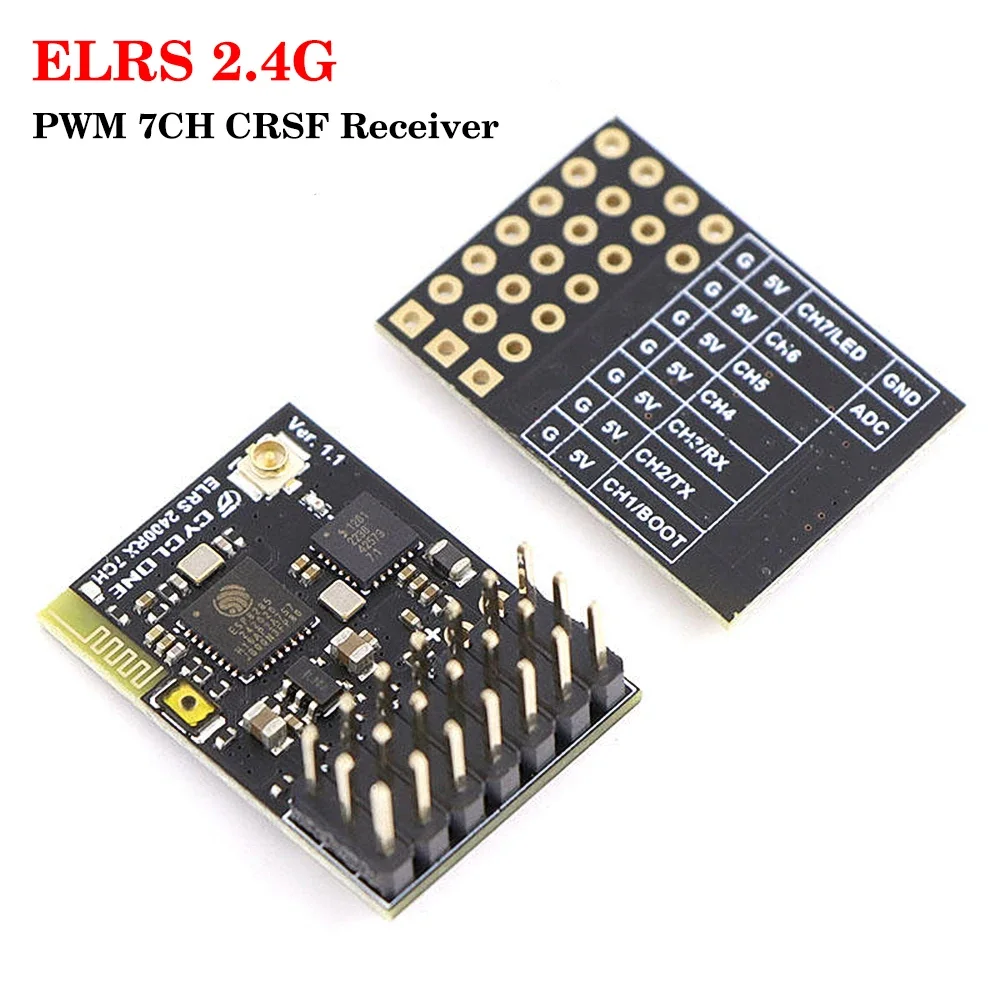

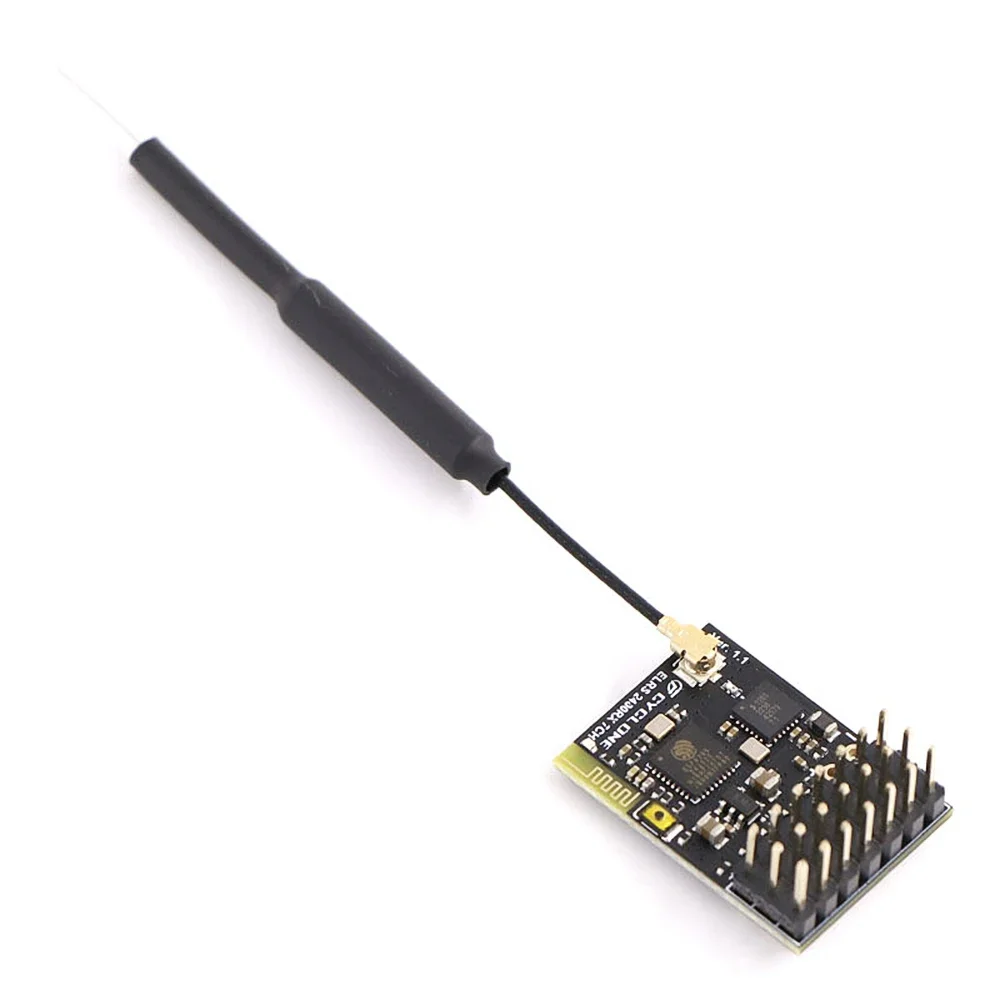

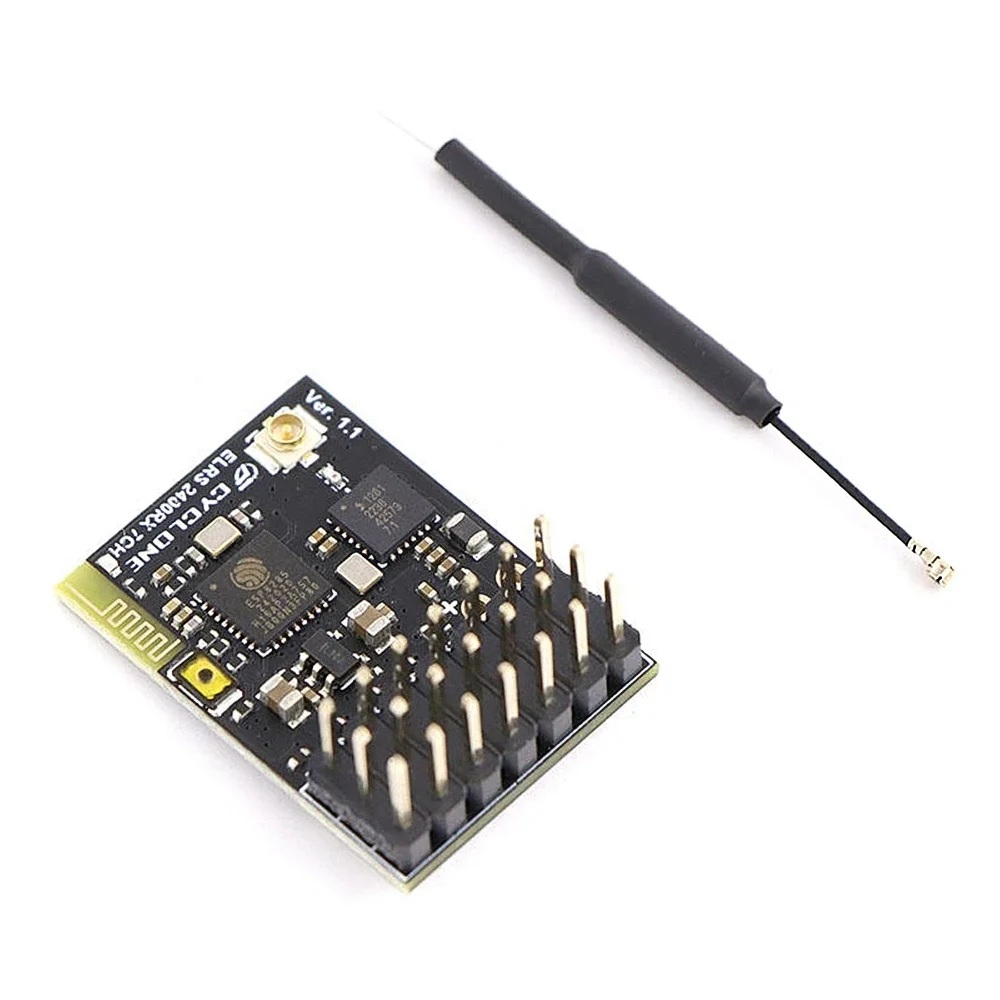

ELRS 2.4G PWM 7CH CRSF Receiver Support ELRS 3.2 PWM/CRSF Protocol Copper Pipe Antenna For RC FPV Drone

• ELRS 2.4G Receiver With Seven-Channel PWM Reception.

• Independent PWM Channel Output, suitable for fixed wing vehicles, ships and other models installed.

• It also supports CRSF output. The two output signals can be switched.

• The PWM 6CH/7CH CRSF switch is easy to switch without rebrushing the firmware

• Turn on the receiver WI-FI network,

• 1. Use the lua menu of the transmitter to activate the WI-FI of the receiver when it is connected to the high-frequency head

• 2. When the high-frequency head is not connected, power on for one minute, and the receiver automatically enters WI-FI

• Search for WIFI on your computer or phone

• WIFI hotspot name: ExpressLRS RX

• Connection password (all lowercase) : expresslrs

• The browser open http://10.0.0.1/hardware.html

• Enter the ELRS hardware configuration page to import the hardware configuration file (Note: do not modify it before you fully understand the meaning of each parameter)

• Import the configuration file we provided, PWM 7CH or CRSF, then click the button at the bottom of the page and wait for the receiver to restart itself

The solution for not entering the WiFi mode:

• power on the receiver three times until the receiver LED starts to blink twice (which means it has entered the binding mode). In the elrslua script, press the bind on the radio. Then go to the wifi connection and select "Enable RX WiFi" PS. If it does not bind, please ensure you are using the main release version (i.e., 3.x.x).



•
