5.8G 40CH Dual Antennas FPV Goggles Monitor Video Glasses Headset HD W/ 5.8G 25mW transmitter fpv camera + Osd for Racing Drone

Sale price$57.12 Regular price$76.16
Save $19.04
Color:

Color

Quantity:

SPECIFICATIONS

Brand Name: U-Angel-1988

Origin: Mainland China

Material: Metal

Recommend Age: 12+y

RC Parts & Accs: Antennas

Size: 135*132*65mm

For Vehicle Type: Airplanes

Use: Vehicles & Remote Control Toys

Certification: CE

Upgrade Parts/Accessories: 5.8Ghz FPV Goggles

Remote Control Peripherals/Devices: 5.8Ghz FPV Goggles

Tool Supplies: 5.8Ghz FPV Goggles

Quantity: 1 pcs

Technical parameters: Value 2

Model Number: LS-VR009

Four-wheel Drive Attributes: 5.8Ghz FPV Goggles

Wheelbase: Upper Shell

Choice: yes

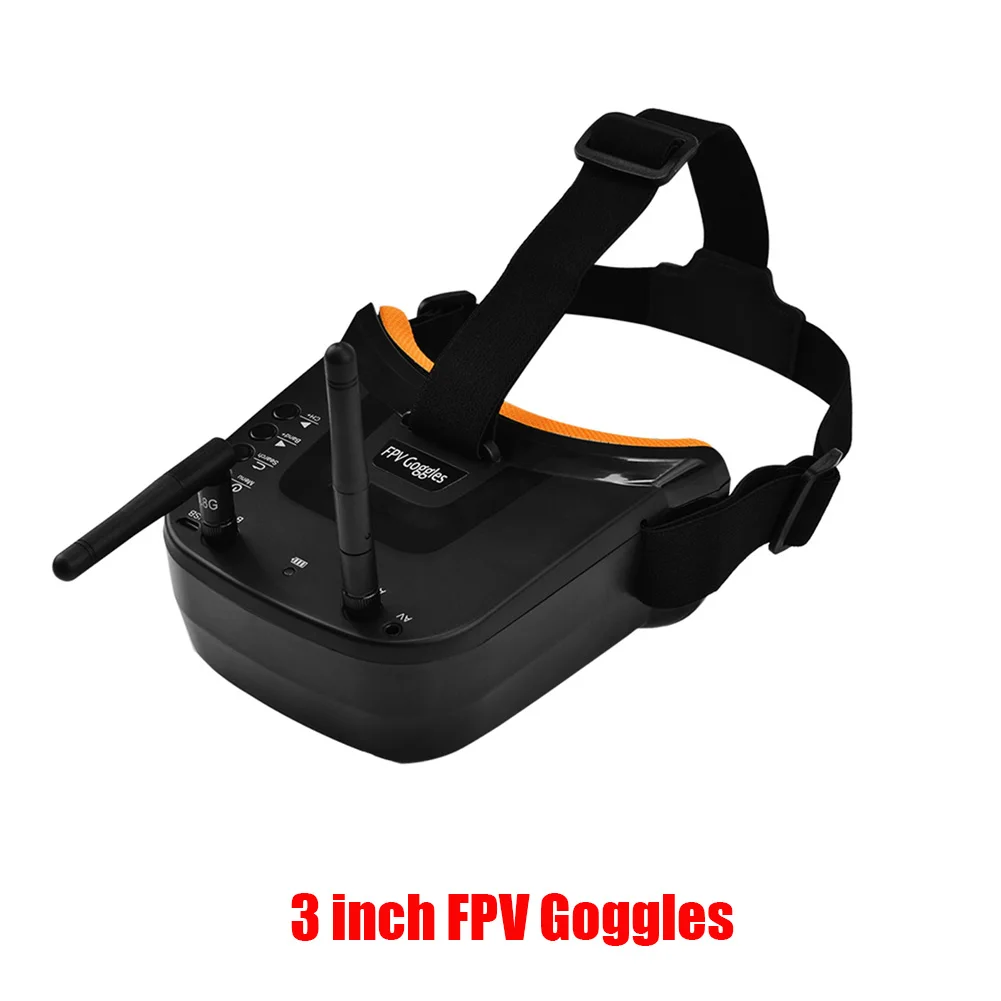

Double Antennas

Built-in 3.7V 1200mAh Battery

Support a key search frequency

RaceBand 40 channel Auto-Searching

Real-time video return 5.8G FPV Receiver

 Small size and light weight;

 Low power consumption, Working current 300~330mA;

 Double antenna reception to make the signal more stable;

 RaceBand 40 channel, Auto-Searching;

 3.0 Inch 480*320 dot high brightness LCD screen;

 Built-in super sensitiveness 5.8GHz 40ch receiver, especially with RaceBand;

 Built-in 3.7V/1200mAh high-capacity Li-ion polymer Battery;

 Universal USB charging interface;

 Real-time video return, Very low time-delay;

 Bilingual menu in support of Chinese and English;

 Support external video signal input;

 Support AV signal output (Connect external DVR);


Key 1: Short press for MENU mode; Long press (More than 3 sec) for Power ON/OFF.

Key 2: Short press for Auto-Searching (Automatic selection of the strongest channel).

Key 3: Short press for Band+ (Change bands A-B-E-F-R circularly).

Key 4: Short press for Channel+ (Change channels 1-2-3-4-5-6-7-8 circularly).

Eye ring: protect the surrounding parts of the eyes, so that the wear more comfortable.

Micro-USB Charging port: Supports DC5V only.

 Antenna port A: RP-SMA male.

Charging indicator: Red light when charging light; full power, the indicator goes off.

Antenna port B: RP-SMA male.

AV Jack: In RF receiving mode can output AV signal; In AV mode can enter the video signal.

Head band: Adjustable headband.


Menu Operation Instructions:

 In normal mode, press Key 1 to enter the MENU mode.

In MENU mode:

Key 1: Select the option bar.

Key 2: Return to normal mode.

Key 3: Value -.

Key 4: Value +.

AV port Instructions:

Dimension Diagram:

Not included antennas and headband.

Safety instruction:

1. Read the entire instruction manual to become familiar with the features of the product before operating.

2. Age Recommendation: Over 14 years old. Using any near eye displays on children under 14 can cause eye development problems. This is not a toy.

3. Please avoid wet or humid environments.

4. Please use standard USB charger, charging voltage can only be 5V.

5. AV output and Video input cannot work at the same time, It is forbidden to insert external video in RF receiving mode.


FPV Camera

Sensor: 1/4 "CMOS
Lens: M8 800TVL Lens
Angle: 150 ° FOV horizontal viewing angle of 170 ° DFOV diagonal perspective
Format: NTSC / PAL (switchable)
Power consumption: 380mA @ 3 · 7V
Power: 3.6-5.5V
Lens Mirror Diameter: 2.1mm IR coated FOV150 (horizontal)

Video Transmitter

Support video format: NTSC / PAL
Output Impedance: 75 Ohm
Output signal strength: 23 ~ 24dBm
Output Power: 25mW
Wireless Channel: 40CH
Antenna: RHCP circular polarization clover leaf antenna
Operating voltage: 3.6V ~ 5.5V
Current: 100mA
Audio carrier: 6.5MHz

Button function
Short press (Apr. 1 sec or less): Change channels 1-8
Long press (More than 1.5 sec): Change bands A-B-E-F-R
Long + press (More than 3 sec): Change NTSC/PAL system
NTSC or PAL (selectable; Blue LED on= NTSC; Blue LED off=PAL)

Body

Weight: 3.6g
Size: 18x16x16mm (without antenna)

Feature:

AIO FPV camera, transmitter , antenna all 3 functions in one limit size and weight
150 ° FOV horizontal viewing angle of 170 ° DFOV diagonal perspective
Five bands 40 channels with Race band
